DTC B2424: Headlight Beam Level Control Motor LH Lost Communication; DTC B2425: Headlight Beam Level Control Motor RH Lost Communication [11/2020 - 08/2021]: Procedure

  1. CLEAR DTC
    1. Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  2

  2. CHECK FOR DTC
    1. Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      Result

      Result Proceed to
      B2424 and B2425 are not output A
      B2424 is output B
      B2425 is output C
      B2424 and B2425 are output D

    Result:

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2020 - ]

    Result:

    See step  4

    Result:

    See step  7

    Result:

    See step  3

  3. CHECK HEADLIGHT ECU SUB-ASSEMBLY LH

    Pre-procedure1

    1. Remove the headlight ECU sub-assembly LH.

      HINT:

      Refer to REMOVAL [11/2020 - 11/2021]

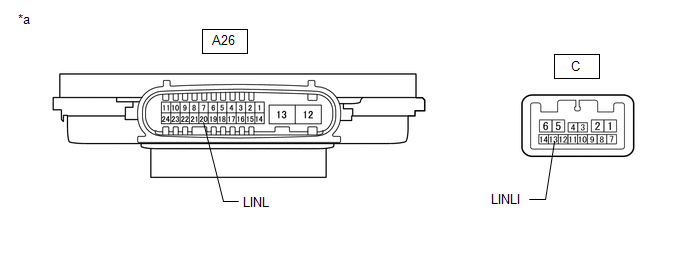

      GTY982536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Headlight ECU Sub-assembly LH)
      - -

      Procedure1

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A26-20 (LINL) - C-13 (LINLI) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

      Post-procedure1

    3. None

    Result:

    OK

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [11/2020 - 11/2021]

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [11/2020 - 11/2021]

  4. CHECK HARNESS AND CONNECTOR (HEADLIGHT ECU SUB-ASSEMBLY LH - HEADLIGHT ECU SUB-ASSEMBLY RH)

    Pre-procedure1

    1. Disconnect the A26 headlight ECU sub-assembly LH connector.
    2. Disconnect the A27 headlight ECU sub-assembly RH connector.

      Procedure1

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A26-20 (LINL) - A27-20 (LINL) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

      Post-procedure1

    4. None

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. CHECK HEADLIGHT ECU SUB-ASSEMBLY LH (LINL TERMINAL SIGNAL OUTPUT)

    Pre-procedure1

    1. Connect the A26 headlight ECU sub-assembly LH connector.

      Procedure1

    2. Using the GTS, check the waveform.

      OK

      Tester Connection Switch Condition Specified Condition
      A26-20 (LINL) - Body ground Ignition switch ON Pulse generation

      Result

      Proceed to
      OK
      NG

      Post-procedure1

    3. None

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [11/2020 - 11/2021]

    Result:

    OK

    See step  6

  6. CHECK HEADLIGHT ECU SUB-ASSEMBLY RH

    Pre-procedure1

    1. Remove the headlight ECU sub-assembly RH.

      HINT:

      Refer to REMOVAL [11/2020 - 11/2021]

      GTY982579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Headlight ECU Sub-assembly RH)
      - -

      Procedure1

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A27-20 (LINL) - C-13 (LINLI) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

      Post-procedure1

    3. None

    Result:

    OK

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [11/2020 - 11/2021]

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [11/2020 - 11/2021]

  7. CHECK HARNESS AND CONNECTOR (HEADLIGHT ECU SUB-ASSEMBLY LH - HEADLIGHT ECU SUB-ASSEMBLY RH)

    Pre-procedure1

    1. Disconnect the A26 headlight ECU sub-assembly LH connector.
    2. Disconnect the A27 headlight ECU sub-assembly RH connector.

      Procedure1

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A26-20 (LINL) or A27-20 (LINL) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

      Post-procedure1

    4. None

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  8

  8. CLEAR DTC

    Pre-procedure1

    1. Connect the A26 headlight ECU sub-assembly LH connector.

      Procedure1

    2. Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Result

      Proceed to
      NEXT

      Post-procedure1

    3. None

    Result:

    NEXT

    See step  9

  9. CHECK FOR DTC

    Pre-procedure1

    1. Connect the GTS to the DLC3.
    2. Turn the ignition switch to ON.
    3. Wait 10 seconds or more.
    4. Turn the GTS on.

      Procedure1

    5. Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      Result

      Result Proceed to
      B2425 is output A
      B2424 and B2425 are output B

      Post-procedure1

    6. None

    Result:

    See step  13

    Result:

    See step  10

  10. CHECK HEADLIGHT ECU SUB-ASSEMBLY RH

    Pre-procedure1

    1. Remove the headlight ECU sub-assembly RH.

      HINT:

      Refer to REMOVAL [11/2020 - 11/2021]

      Procedure1

    2. Connect the A27 headlight ECU sub-assembly RH connector.

      Result

      Proceed to
      NEXT

      Post-procedure1

    3. None

    Result:

    NEXT

    See step  11

  11. CLEAR DTC
    1. Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  12

  12. CHECK FOR DTC

    Pre-procedure1

    1. Connect the GTS to the DLC3.
    2. Turn the ignition switch to ON.
    3. Wait 10 seconds or more.
    4. Turn the GTS on.
    5. Enter the following menus: Body Electrical / AFS / Trouble Codes.

      Procedure1

    6. Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      Result

      Result Proceed to
      B2425 is output A
      B2424 and B2425 are output B

      Post-procedure1

    7. None

    Result:

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [11/2020 - 11/2021]

    Result:

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [11/2020 - 11/2021]

  13. CHECK HEADLIGHT ECU SUB-ASSEMBLY LH

    Pre-procedure1

    1. Remove the headlight ECU sub-assembly LH.

      HINT:

      Refer to REMOVAL [11/2020 - 11/2021]

    2. Connect the A26 headlight ECU sub-assembly LH connector.

      Procedure1

    3. Connect the A27 headlight ECU sub-assembly RH connector.

      Result

      Proceed to
      NEXT

      Post-procedure1

    4. None

    Result:

    NEXT

    See step  14

  14. CLEAR DTC
    1. Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  15

  15. CHECK FOR DTC

    Pre-procedure1

    1. Connect the GTS to the DLC3.
    2. Turn the ignition switch to ON.
    3. Wait 10 seconds or more.
    4. Turn the GTS on.
    5. Enter the following menus: Body Electrical / AFS / Trouble Codes.

      Procedure1

    6. Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      Result

      Result Proceed to
      B2424 is output A
      B2424 and B2425 are output B

      Post-procedure1

    7. None

    Result:

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [11/2020 - 11/2021]

    Result:

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [11/2020 - 11/2021]
