DTC B2424: Headlight Beam Level Control Motor LH Lost Communication; DTC B2425: Headlight Beam Level Control Motor RH Lost Communication [08/2021 - 12/2023]: Procedure

  1. CLEAR DTC
    1. Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  2

  2. CHECK FOR DTC
    1. Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      Result

      Result Proceed to
      B2424 and B2425 are not output A
      B2424 is output B
      B2425 is output C
      B2424 and B2425 are output D

    Result:

    A

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2020 - ]

    Result:

    C

    See step  4

    Result:

    D

    See step  7

    Result:

    B

    See step  3

  3. CHECK HEADLIGHT ECU SUB-ASSEMBLY LH

    Pre-procedure1

    • Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A96-20 (LINL) - C-13 (LINLI) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    OK

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [11/2020 - 11/2021]  , or refer to  DISASSEMBLY [11/2021 - 12/2023]

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [11/2020 - 11/2021]  , or refer to  REMOVAL [11/2021 - 12/2022]  , or refer to  REMOVAL [12/2022 - 12/2023]

  4. CHECK HARNESS AND CONNECTOR (HEADLIGHT ECU SUB-ASSEMBLY LH - HEADLIGHT ECU SUB-ASSEMBLY RH)

    Pre-procedure1

    • Disconnect the A96 headlight ECU sub-assembly LH connector.
    • Disconnect the A97 headlight ECU sub-assembly RH connector.
    • Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A96-20 (LINL) - A97-20 (LINL) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. CHECK HEADLIGHT ECU SUB-ASSEMBLY LH (LINL TERMINAL SIGNAL OUTPUT)

    Pre-procedure1

    • Connect the A96 headlight ECU sub-assembly LH connector.
    • Using the GTS, check the waveform.

      OK

      Tester Connection Switch Condition Specified Condition
      A96-20 (LINL) - Body ground Ignition switch ON Pulse generation

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [11/2020 - 11/2021]  , or refer to  REMOVAL [11/2021 - 12/2022]  , or refer to  REMOVAL [12/2022 - 12/2023]

    Result:

    OK

    See step  6

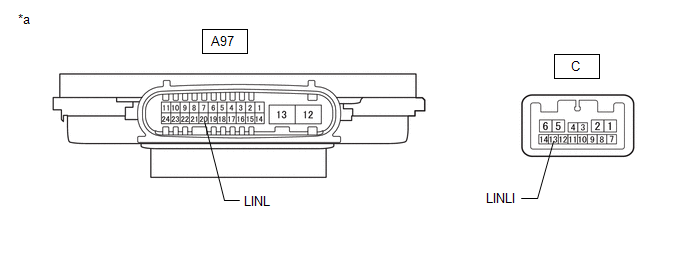

  6. CHECK HEADLIGHT ECU SUB-ASSEMBLY RH

    Pre-procedure1

    • Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A97-20 (LINL) - C-13 (LINLI) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    OK

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [11/2020 - 11/2021]  , or refer to  DISASSEMBLY [11/2021 - 12/2023]

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [11/2020 - 11/2021]  , or refer to  REMOVAL [11/2021 - 12/2022]  , or refer to  REMOVAL [12/2022 - 12/2023]

  7. CHECK HARNESS AND CONNECTOR (HEADLIGHT ECU SUB-ASSEMBLY LH - HEADLIGHT ECU SUB-ASSEMBLY RH)

    Pre-procedure1

    • Disconnect the A96 headlight ECU sub-assembly LH connector.
    • Disconnect the A97 headlight ECU sub-assembly RH connector.
    • Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A96-20 (LINL) or A97-20 (LINL) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Post-procedure1

    • None

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  8

  8. CLEAR DTC

    Pre-procedure1

    • Connect the A96 headlight ECU sub-assembly LH connector.
    • Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Result

      Proceed to
      NEXT

    Post-procedure1

    • None

    Result:

    NEXT

    See step  9

  9. CHECK FOR DTC

    Pre-procedure1

    • Connect the GTS to the DLC3.
    • Turn the ignition switch to ON.
    • Wait 10 seconds or more.
    • Turn the GTS on.
    • Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      Result

      Result Proceed to
      B2425 is output A
      B2424 and B2425 are output B

    Post-procedure1

    • None

    Result:

    B

    See step  13

    Result:

    A

    See step  10

  10. CHECK HEADLIGHT ECU SUB-ASSEMBLY RH

    Pre-procedure1

    • Connect the A97 headlight ECU sub-assembly RH connector.

      Result

      Proceed to
      NEXT

    Post-procedure1

    • None

    Result:

    NEXT

    See step  11

  11. CLEAR DTC
    1. Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  12

  12. CHECK FOR DTC

    Pre-procedure1

    • Connect the GTS to the DLC3.
    • Turn the ignition switch to ON.
    • Wait 10 seconds or more.
    • Turn the GTS on.
    • Enter the following menus: Body Electrical / AFS / Trouble Codes.
    • Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      Result

      Result Proceed to
      B2425 is output A
      B2424 and B2425 are output B

    Post-procedure1

    • None

    Result:

    A

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [11/2020 - 11/2021]  , or refer to  DISASSEMBLY [11/2021 - 12/2023]

    Result:

    B

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [11/2020 - 11/2021]  , or refer to  REMOVAL [11/2021 - 12/2022]  , or refer to  REMOVAL [12/2022 - 12/2023]

  13. CHECK HEADLIGHT ECU SUB-ASSEMBLY LH

    Pre-procedure1

    • Connect the A97 headlight ECU sub-assembly RH connector.

      Result

      Proceed to
      NEXT

    Post-procedure1

    • None

    Result:

    NEXT

    See step  14

  14. CLEAR DTC
    1. Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  15

  15. CHECK FOR DTC

    Pre-procedure1

    • Connect the GTS to the DLC3.
    • Turn the ignition switch to ON.
    • Wait 10 seconds or more.
    • Turn the GTS on.
    • Enter the following menus: Body Electrical / AFS / Trouble Codes.
    • Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      Result

      Result Proceed to
      B2424 is output A
      B2424 and B2425 are output B

    Post-procedure1

    • None

    Result:

    A

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [11/2020 - 11/2021]  , or refer to  DISASSEMBLY [11/2021 - 12/2023]

    Result:

    B

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [11/2020 - 11/2021]  , or refer to  REMOVAL [11/2021 - 12/2022]  , or refer to  REMOVAL [12/2022 - 12/2023]
