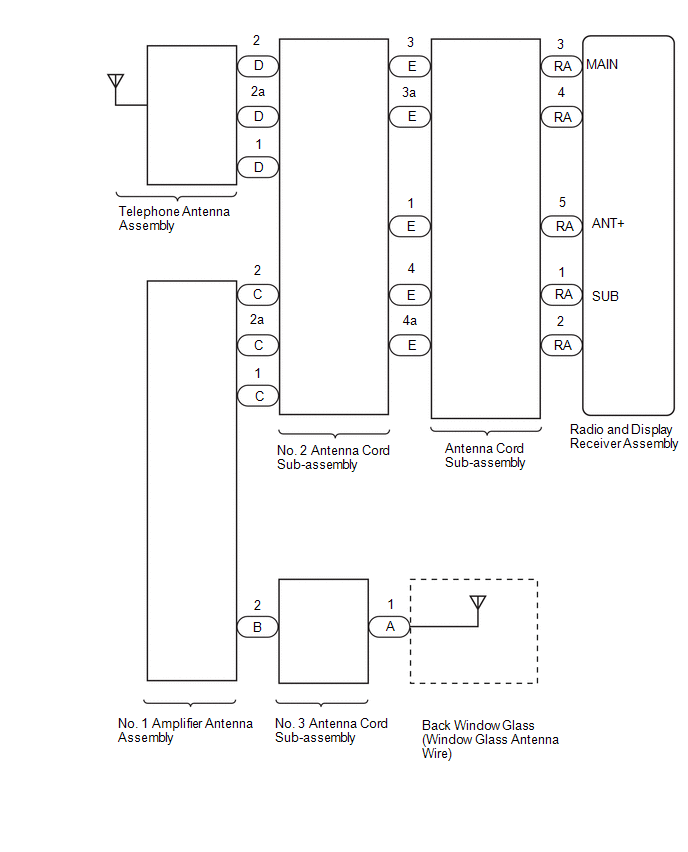

Radio Broadcast cannot be Received or Poor Reception [11/2020 - 12/2022]: Wiring Diagram

GTY992011

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
