Audio / Video System - Diagnostic Codes (2 Of 2) & Symptom Tests (1 Of 2)
>>
Audio And Visual System
>>
DTC U11D0-87: Lost Local Communication with MET Missing Message; DTC U11D1-87: Lost Local Communication with HUD Missing Message [12/2022 - 12/2023]
>>

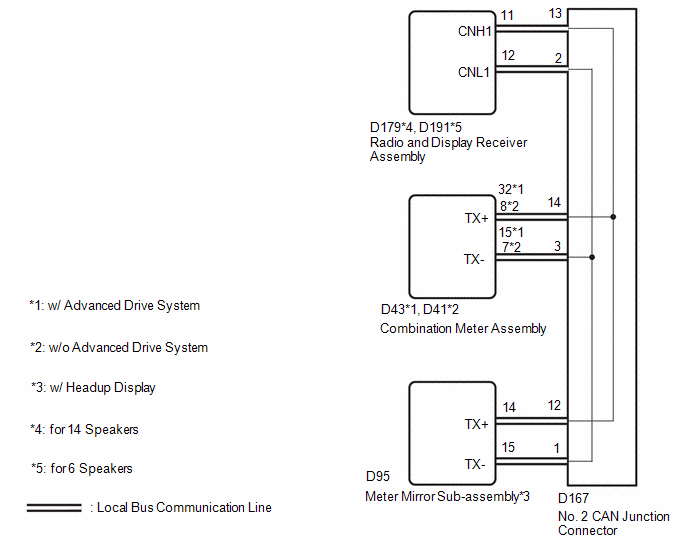

Wiring Diagram
DTC U11D0-87: Lost Local Communication with MET Missing Message; DTC U11D1-87: Lost Local Communication with HUD Missing Message [12/2022 - 12/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
