Removal [12/2023 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

  2. REMOVE FRONT SIDE RADAR SENSOR

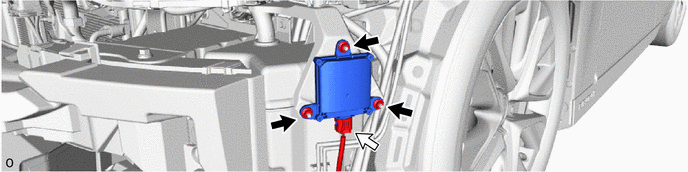

    1. GTY1161554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut Connector
    2. The orientation for the RH side is the opposite of the LH side.
  3. REMOVE FRONT FENDER UPPER PROTECTOR LH

    HINT:

    Perform this procedure only when replacement of the front side radar sensor bracket LH is necessary.

    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3
  4. REMOVE FRONT FENDER UPPER PROTECTOR RH

    HINT:

    Perform this procedure only when replacement of the front side radar sensor bracket RH is necessary.

    1. Use the same procedure described for the LH side.
  5. REMOVE HEADLIGHT ASSEMBLY LH

    HINT:

    Perform this procedure only when replacement of the front side radar sensor bracket LH is necessary.

    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4
  6. REMOVE HEADLIGHT ASSEMBLY RH

    HINT:

    Perform this procedure only when replacement of the front side radar sensor bracket RH is necessary.

    1. Use the same procedure described for the LH side.
  7. REMOVE FRONT SIDE RADAR SENSOR BRACKET LH

    HINT:

    Perform this procedure only when replacement of the front side radar sensor bracket LH is necessary.

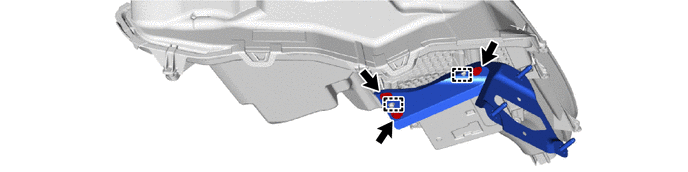

    1. GTY1167513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT SIDE RADAR SENSOR BRACKET RH

    HINT:

    Perform this procedure only when replacement of the front side radar sensor bracket RH is necessary.

    1. Use the same procedure described for the LH side.
