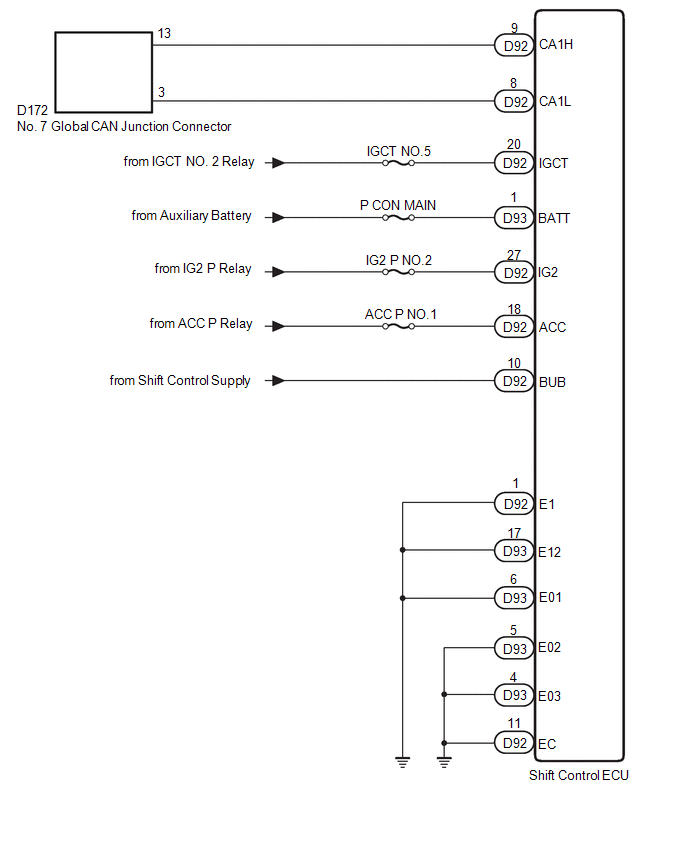

Shift Control ECU Communication Stop Mode [11/2020 - 12/2022]: Wiring Diagram

GTY978687

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
