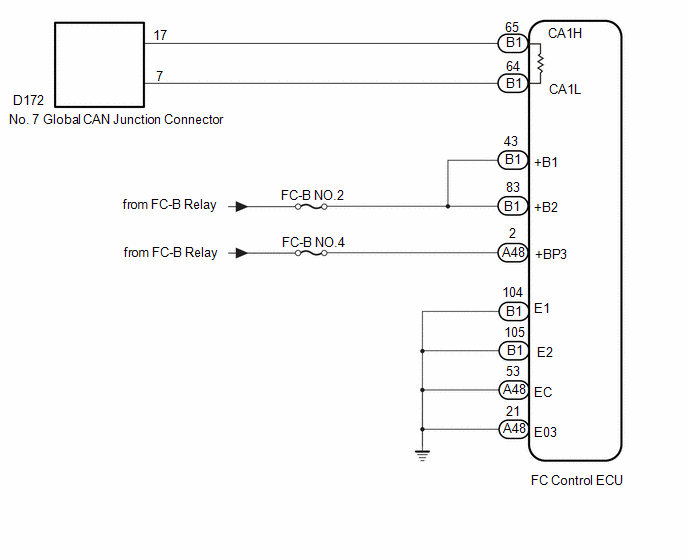

FC Control ECU Communication Stop Mode [12/2022 - 12/2023]: Wiring Diagram

GTY1167413

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
