Removal [11/2021 - 12/2022]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
Refer to PRECAUTION [11/2020 - ]
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL NOTE:
It is necessary to remove the shift control ECU while no power is being supplied from the sub-battery. Therefore, perform the following procedures.
- Turn the ignition switch off.
- Check that the ODO meter display has turned off.
HINT:
The ODO meter continues to display for 30 seconds after turning off. Therefore, allow sufficient time for the shift control ECU to enter sleep mode and for the sub-battery power supply to end. In addition to monitoring the sub-battery voltage directly, the only other method for checking on the vehicle is to use the ODO meter display.
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
Refer to REMOVAL [11/2021 - 12/2022]

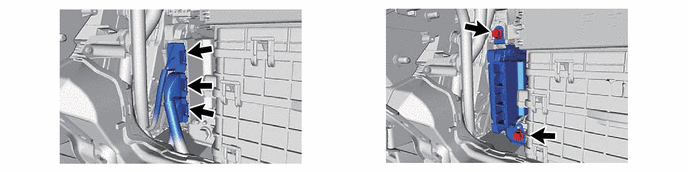

- REMOVE SHIFT CONTROL ECU

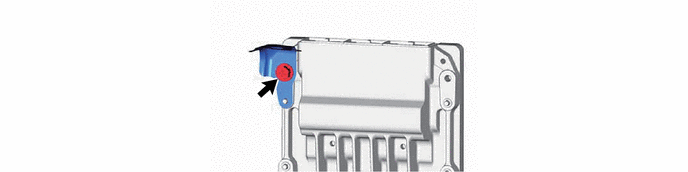

- REMOVE NO. 1 SHIFT CONTROL ECU BRACKET

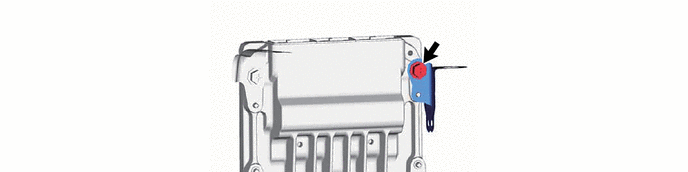

- REMOVE NO. 2 SHIFT CONTROL ECU BRACKET
