COMPONENTS (INSTALLATION)

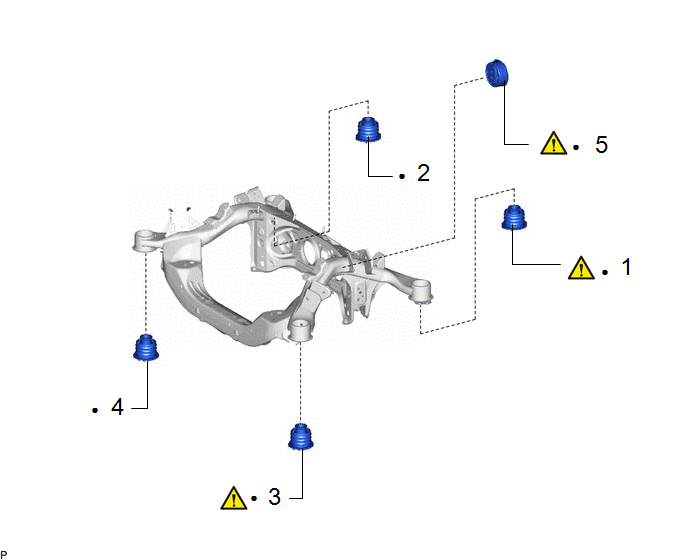

Fig 1: Rear Suspension Member Installation Components [11/2020 - 12/2022] (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION (for LH Side)	52275A	See step 1	-	-
2	REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION (for RH Side)	52275A	-	-	-
3	REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH	52272A	See step 3	-	-
4	REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH	52271E	-	-	-
5	REAR MOTOR MOUNTING INSULATOR	G2371A	See step 5	-	-

•

Non-reusable part

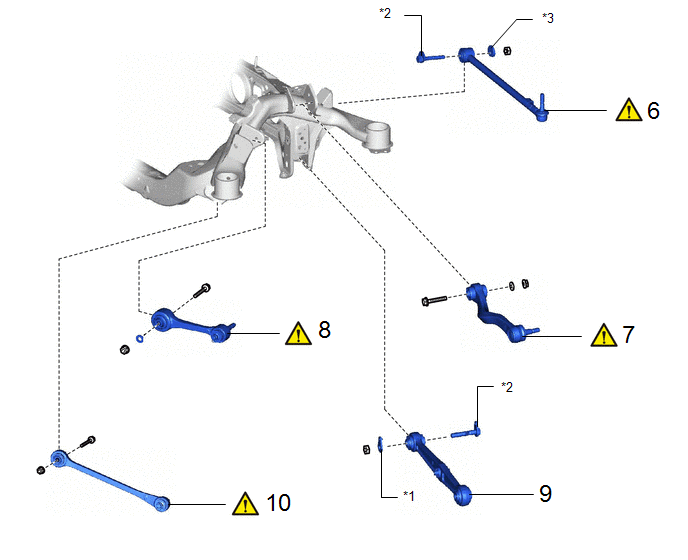

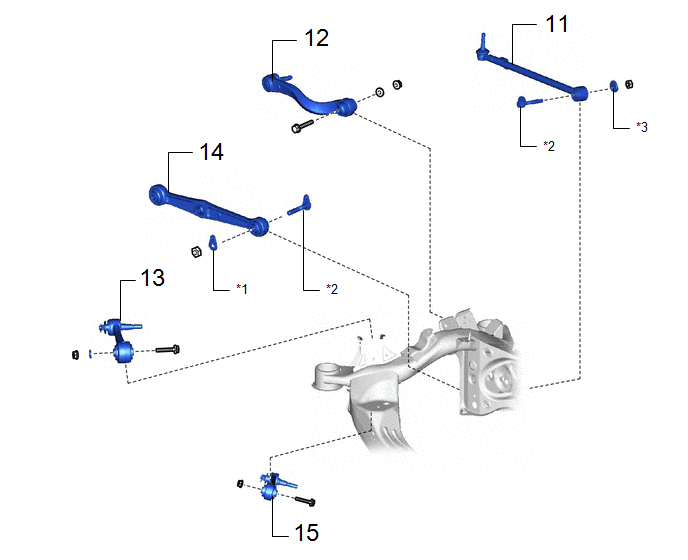

Fig 2: Rear Suspension Member Installation Components [11/2020 - 12/2022] (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6	TEMPORARILY TIGHTEN TOE CONTROL LINK SUB-ASSEMBLY LH	48706B	See step 6	-	-
7	TEMPORARILY TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY LH	48790	See step 7	-	-
8	TEMPORARILY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY LH	48720A	See step 8	-	-
9	TEMPORARILY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY LH	48740F	-	-	-
10	TEMPORARILY TIGHTEN LOWER CONTROL ARM ASSEMBLY LH	48730	See step 10	-	-

*1	REAR NO. 2 SUSPENSION TOE ADJUST PLATE	*2	REAR SUSPENSION ARM ATTACHMENT SUB-ASSEMBLY
*3	REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY	-	-

Fig 3: Rear Suspension Member Installation Components [11/2020 - 12/2022] (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11	TEMPORARILY TIGHTEN TOE CONTROL LINK SUB-ASSEMBLY RH	48706B	-	-	-
12	TEMPORARILY TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY RH	48790	-	-	-
13	TEMPORARILY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY RH	48720A	-	-	-
14	TEMPORARILY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY RH	48740F	-	-	-
15	TEMPORARILY TIGHTEN LOWER CONTROL ARM ASSEMBLY RH	48730	-	-	-

*1	REAR NO. 2 SUSPENSION TOE ADJUST PLATE	*2	REAR SUSPENSION ARM ATTACHMENT SUB-ASSEMBLY
*3	REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY	-	-

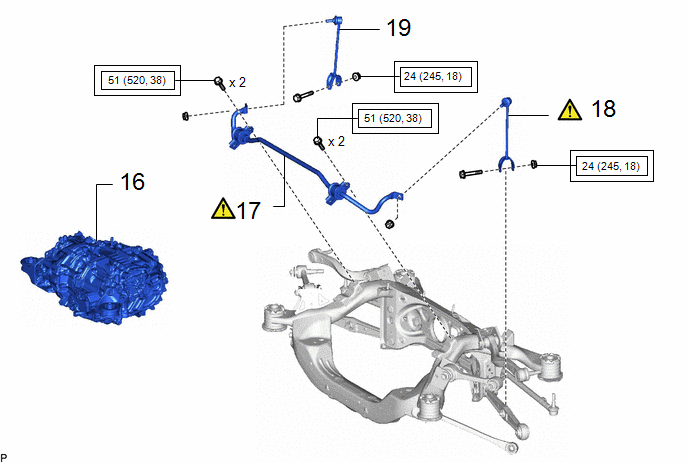

Fig 4: Rear Suspension Member Installation Components With Torque Specifications [11/2020 - 12/2022] (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16	FCV WITH MOTOR TRANSAXLE ASSEMBLY	30600R	-	-	-
17	REAR STABILIZER BAR	48812	See step 17	-	-
18	TEMPORARILY TIGHTEN REAR STABILIZER LINK ASSEMBLY LH	48840A	See step 18	-	-
19	TEMPORARILY TIGHTEN REAR STABILIZER LINK ASSEMBLY RH	48830D	-	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)

Fig 5: Rear Suspension Member Installation Components With Torque Specifications [11/2020 - 12/2022] (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
20	PARKING BRAKE WITH BRACKET ACTUATOR ASSEMBLY	46300	See step 20	-	-
21	NO. 2 MOTOR CABLE BRACKET	G1143	-	-	-
22	MOTOR CABLE BRACKET	G1143F	-	-	-
23	REAR UPPER REAR SUSPENSION MEMBER STOPPER	52278C	-	-	-
24	REAR LOWER SUSPENSION MEMBER STOPPER	52277B	-	-	-
25	REAR SUSPENSION MEMBER SUB-ASSEMBLY	51206A	See step 25	-	-
26	NO. 1 BOND CABLE	82001	-	-	-
27	OIL COOLER TUBE SUB-ASSEMBLY	32906F	See step 27	-	-
28	REAR DRIVE SHAFT ASSEMBLY LH	42340B	-	-	-
29	REAR DRIVE SHAFT ASSEMBLY RH	42330	-	-	-

*1	REAR LOWER SUSPENSION MEMBER STOPPER LH	*2	REAR LOWER SUSPENSION MEMBER STOPPER RH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

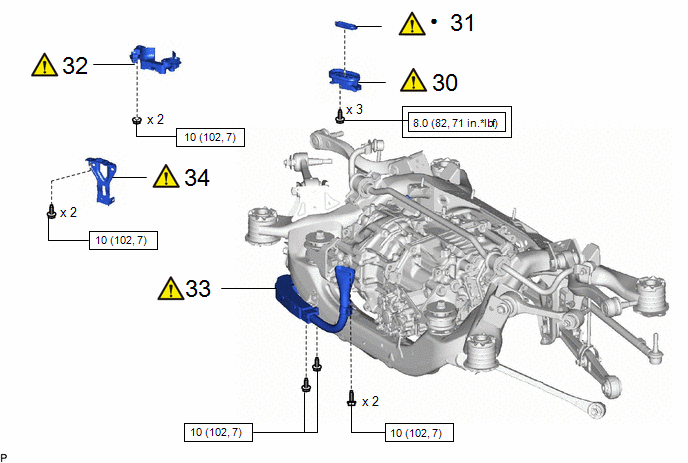

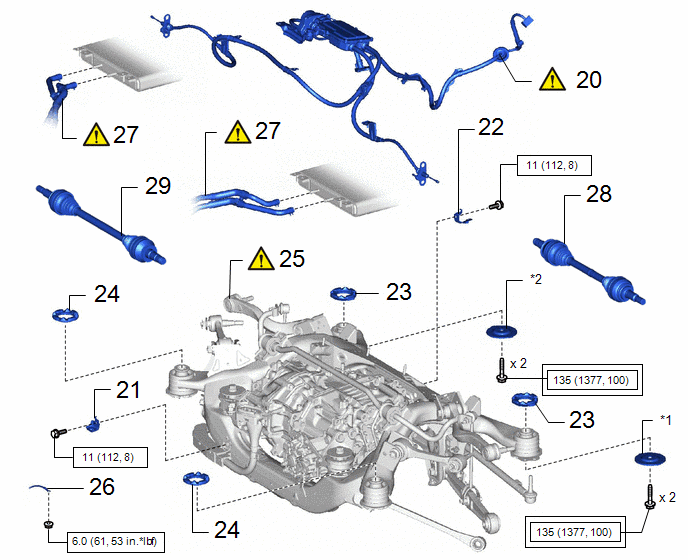

Fig 6: Rear Suspension Member Installation Components With Torque Specifications [11/2020 - 12/2022] (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
30	WIRING HARNESS CONNECTOR	82H24	See step 30	-	-
31	MOTOR CABLE TERMINAL CAP	G114D	See step 31	-	-
32	CONNECTOR COVER	82821T	See step 32	-	-
33	MOTOR CABLE	G1148	See step 33	-	-
34	MOTOR CABLE BRACKET	G1143	See step 34	-	-

	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-

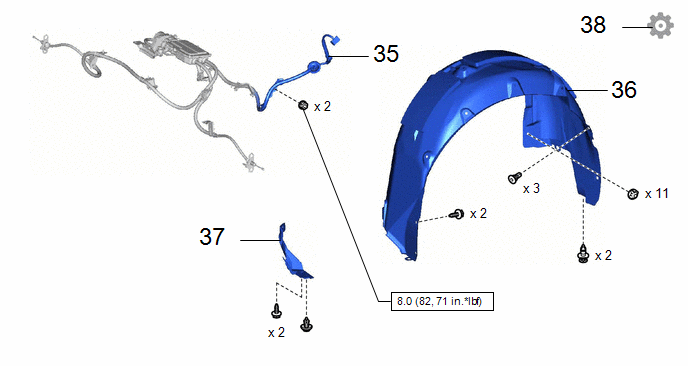

Fig 7: Rear Suspension Member Installation Components With Torque Specifications [11/2020 - 12/2022] (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
35	PARKING BRAKE WITH BRACKET ACTUATOR ASSEMBLY	46300	-	-	-
36	REAR WHEEL HOUSE LINER LH	65638	-	-	-
37	ROCKER PANEL MOULDING PROTECTOR LH	75866E	-	-	-
38	STABILIZE SUSPENSION	-	-	-	See step 38

N.m (kgf/cm, ft.lbf): Specified torque

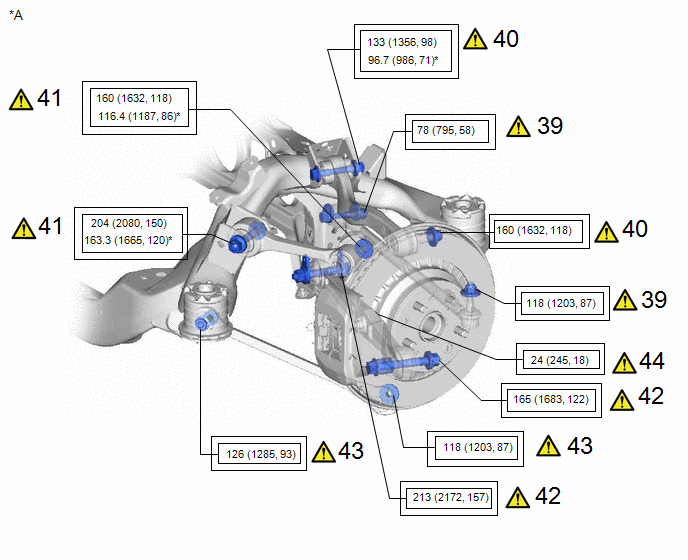

Fig 8: Rear Suspension Member Installation Components With Torque Specifications [11/2020 - 12/2022] (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
39	FULLY TIGHTEN TOE CONTROL LINK SUB-ASSEMBLY LH	48706B	See step 39	-	-
40	FULLY TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY LH	48790	See step 40	-	-
41	FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY LH	48720A	See step 41	-	-
42	FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY LH	48740F	See step 42	-	-
43	FULLY TIGHTEN LOWER CONTROL ARM ASSEMBLY LH	48730	See step 43	-	-
44	FULLY TIGHTEN REAR STABILIZER LINK ASSEMBLY LH	48840A	See step 44	-	-

*A	for LH Side	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	*	For use with ball joint lock nut wrench

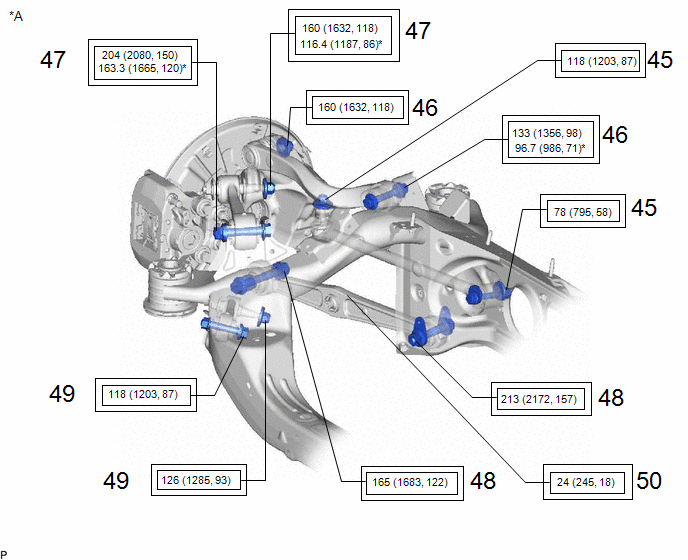

Fig 9: Rear Suspension Member Installation Components With Torque Specifications [11/2020 - 12/2022] (9 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
45	FULLY TIGHTEN TOE CONTROL LINK SUB-ASSEMBLY RH	48706B	-	-	-
46	FULLY TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY RH	48790	-	-	-
47	FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY RH	48720A	-	-	-
48	FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY RH	48740F	-	-	-
49	FULLY TIGHTEN LOWER CONTROL ARM ASSEMBLY RH	48730	-	-	-
50	FULLY TIGHTEN REAR STABILIZER LINK ASSEMBLY RH	48830D	-	-	-

*A	for RH Side	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	*	For use with ball joint lock nut wrench

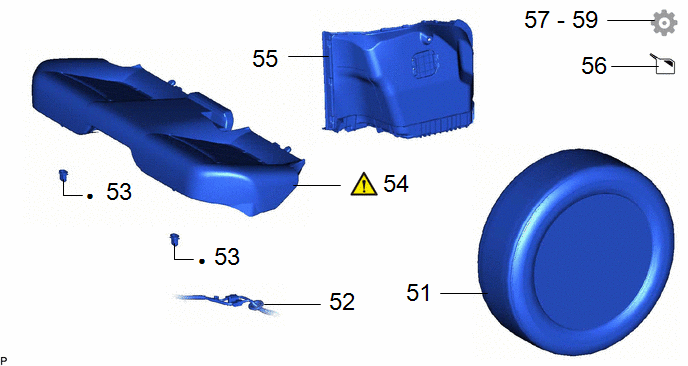

Fig 10: Rear Suspension Member Installation Components [11/2020 - 12/2022] (10 Of 13)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
51	REAR TIRE	-	-	-	-
52	WIRE HARNESS	-	-	-	-
53	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-
54	BENCH TYPE REAR SEAT CUSHION ASSEMBLY	-	See step 54	-	-
55	INNER LUGGAGE COMPARTMENT TRIM COVER LH	64721	-	-	-
56	ADD HYBRID TRANSAXLE FLUID	-	-	See step 56	-
57	INSPECT HYBRID TRANSAXLE FLUID	-	-	-	See step 57
58	INSPECT AIR FROM HYBRID TRANSAXLE FLUID	-	-	-	See step 58
59	INSPECT FOR HYBRID TRANSAXLE FLUID LEAK	-	-	-	See step 58

•

Non-reusable part

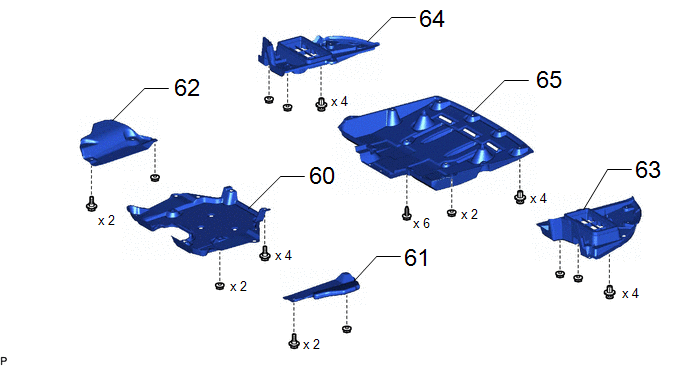

Fig 11: Rear Suspension Member Installation Components [11/2020 - 12/2022] (11 Of 13)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
60	REAR SUSPENSION BRACE COVER	53661B	-	-	-
61	NO. 1 DIFFERENTIAL SUPPORT PROTECTOR	52383E	-	-	-
62	NO. 2 DIFFERENTIAL SUPPORT PROTECTOR	52384C	-	-	-
63	TRANSMISSION OIL COOLER UNDER COVER LH	32912B	-	-	-
64	TRANSMISSION OIL COOLER UNDER COVER RH	32911	-	-	-
65	NO. 1 FLOOR UNDER COVER	58398F	-	-	-

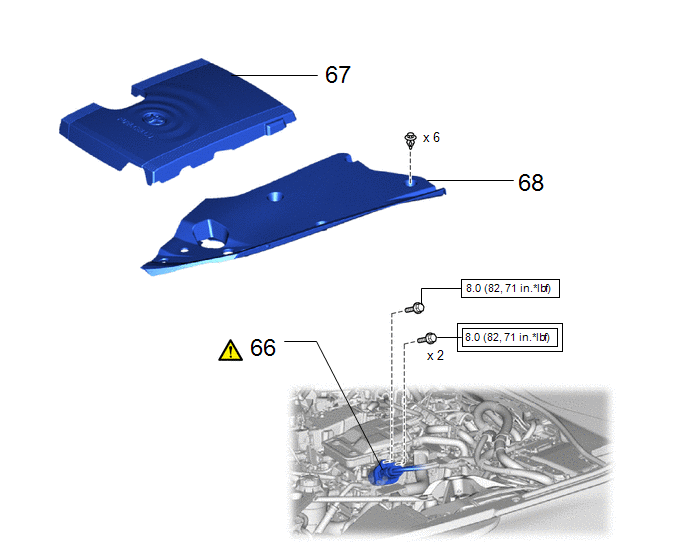

Fig 12: Rear Suspension Member Installation Components With Torque Specifications [11/2020 - 12/2022] (12 Of 13)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
66	FC CONVERTER POWER OUTLET CABLE (INVERTER WITH CONVERTER ASSEMBLY)	G9200A	See step 66	-	-
67	FC STACK COVER SUB-ASSEMBLY	1A906	-	-	-
68	UPPER RADIATOR SUPPORT SEAL	53292A	-	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)

N.m (kgf/cm, ft.lbf): Specified torque

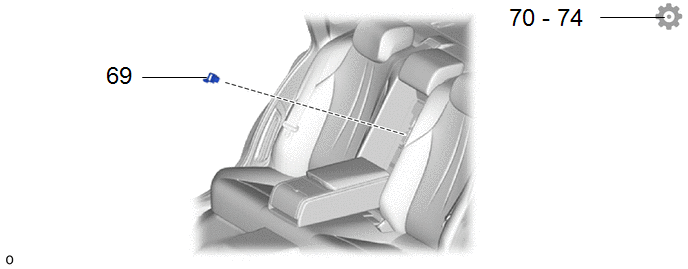

Fig 13: Rear Suspension Member Installation Components [11/2020 - 12/2022] (13 Of 13)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
69	SERVICE PLUG GRIP	G3834	-	-	-
70	INSPECT AND ADJUST REAR WHEEL ALIGNMENT	-	-	-	See step 70
71	ADJUST PARKING BRAKE	-	-	-	See step 71
72	CHECK FOR SPEED SENSOR SIGNAL	-	-	-	See step 72
73	INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL	-	-	-	See step 73
74	PERFORM INITIALIZATION	-	-	-	See step 74
