DTC B0050-13: Driver Seat Belt Sensor Circuit Open [11/2020 - 12/2022]: Procedure

Pre-procedure1

• Turn the ignition switch off.
• Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.

• Check that the connectors are properly connected to the airbag ECU assembly and front seat inner belt assembly LH.

  OK

  The connectors are properly connected.

  Result

  Proceed to
  OK
  NG

Post-procedure1

• None

Result:

NG

CONNECT CONNECTORS PROPERLY

Result:

OK

See step  2

Pre-procedure1

• Disconnect the airbag ECU assembly connector.

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  *1	Front Seat Inner Belt Assembly LH
  *2	Airbag ECU Assembly
  *3	Wire Harness

• Disconnect the front seat inner belt assembly LH connector.

• Check that the connectors (on the airbag ECU assembly side and front seat inner belt assembly LH side) are not damaged.

  OK

  The terminals of the connectors are not deformed or damaged.

  Result

  Proceed to
  OK
  NG

Post-procedure1

• None

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

Pre-procedure1

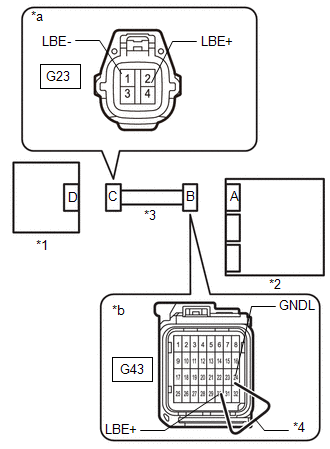

• Using a service wire, connect terminals 30 (LBE+) and 24 (GNDL) of connector B.
  NOTE:

  Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  *1	Front Seat Inner Belt Assembly LH
  *2	Airbag ECU Assembly
  *3	Wire Harness
  *4	Service Wire
  *a	Front view of wire harness connector (to Front Seat Inner Belt Assembly LH)
  *b	Front view of wire harness connector (to Airbag ECU Assembly)

• Measure the resistance according to the value(s) in the table below.

  Standard Resistance

  Tester Connection	Condition	Specified Condition	Result
  G23-2 (LBE+) - G23-1 (LBE-)	Always	Below 1 Ω	Ω

  Result

  Proceed to
  OK
  NG

Post-procedure1

• Disconnect the service wire from connector B.

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

1. Using a service wire, connect terminals 2 (LBE+) and 1 (LBE-) of connector C.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Front Seat Inner Belt Assembly LH
   *2	Airbag ECU Assembly
   *3	Wire Harness
   *4	Service Wire
   *a	Front view of wire harness connector (to Front Seat Inner Belt Assembly LH)

   NOTE:

   Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

2. Connect the airbag ECU assembly connector.
3. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
4. Turn the ignition switch to ON, and wait for at least 60 seconds.
5. Clear the DTCs stored in memory.

   Body Electrical > SRS Airbag > Clear DTCs

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  5

Pre-procedure1

• Turn the ignition switch off.
• Turn the ignition switch to ON, and wait for at least 60 seconds.

• Check for DTCs.

  Body Electrical > SRS Airbag > Trouble Codes

  Result

  Result	Proceed to
  B0050-13 is output	A
  B0050-11 is output	B
  B0050-12 is output	C

Post-procedure1

• None

Result:

A

REPLACE AIRBAG ECU ASSEMBLY. Refer to  REMOVAL [11/2020 - 11/2021]  , or refer to  REMOVAL [11/2021 - 12/2022]

Result:

B

REPLACE FRONT SEAT INNER BELT ASSEMBLY RH. Refer to  REMOVAL [11/2020 - 11/2021]  , or refer to  REMOVAL [11/2021 - 12/2022]

Result:

C

REPLACE FRONT SEAT INNER BELT ASSEMBLY RH. Refer to  REMOVAL [11/2020 - 11/2021]  , or refer to  REMOVAL [11/2021 - 12/2022]
