ECU Power Source Circuit [11/2020 - 12/2023]: Procedure
- CHECK EV CONTROL ECU (+B1, +B2 VOLTAGE)
- Turn the ignition switch to ON (IG).
- Measure the voltage according to the value(s) in the table below.
*a Component with harness connected
(EV Control ECU)Standard Voltage
Tester Connection Condition Specified Condition A17-1 (+B1) - Body ground Ignition switch ON 11 to 14 V A8-7 (+B2) - Body ground Ignition switch ON 11 to 14 V Result
Proceed to OK NG - Turn the ignition switch off.
Result:
NG
See step 3
Result:
OK
See step 2
- CHECK HARNESS AND CONNECTOR (EV CONTROL ECU - BODY GROUND)
- Disconnect the A8 and A17 EV control ECU connectors.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

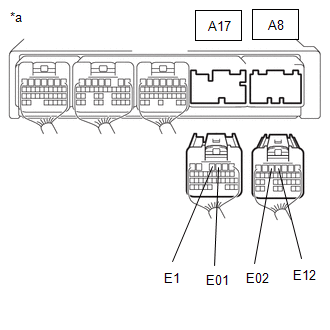

Tester Connection Condition Specified Condition A17-4 (E1) - Body ground Ignition switch off Below 1 Ω A8-4 (E12) - Body ground Ignition switch off Below 1 Ω A17-3 (E01) - Body ground Ignition switch off Below 1 Ω A8-5 (E02) - Body ground Ignition switch off Below 1 Ω *a Rear view of wire harness connector
(to EV Control ECU)Result
Proceed to OK NG - Reconnect the A8 and A17 EV control ECU connectors.
Result:
OK
GO TO PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [11/2020 - 12/2023]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- CHECK EV CONTROL ECU (MREL VOLTAGE)
- Turn the ignition switch to ON (IG).
- Measure the voltage according to the value(s) in the table below.
*a Component with harness connected
(to EV Control ECU)Standard Voltage
Tester Connection Condition Specified Condition A8-21 (MREL) - Body ground Ignition switch ON 11 to 14 V Result
Proceed to OK NG - Turn the ignition switch off.
Result:
NG
REPLACE EV CONTROL ECU. Refer to REMOVAL [11/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 12/2022] , or refer to REMOVAL [12/2022 - 12/2023]
Result:
OK
See step 4
- CHECK FUSE (PM-IGCT)
- Remove the PM-IGCT fuse from the luggage room relay block.
*1 Luggage Room Relay Block *2 PM-IGCT Fuse - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition PM-IGCT fuse terminals Always Below 1 Ω Result
Proceed to OK NG - Install the PM-IGCT fuse.
Result:
NG
See step 11
Result:
OK
See step 5
- Remove the PM-IGCT fuse from the luggage room relay block.
- CHECK FUSE (IGCT NO. 2)
- Remove the IGCT NO. 2 fuse from the luggage room relay block.
*1 Luggage Room Relay Block *2 IGCT NO. 2 Fuse - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition IGCT NO. 2 fuse terminals Always Below 1 Ω Result
Proceed to OK NG - Install the IGCT NO. 2 fuse.
Result:
NG
See step 12
Result:
OK
See step 6
- Remove the IGCT NO. 2 fuse from the luggage room relay block.
- INSPECT RELAY (IGCT NO. 2)
- Remove the IGCT NO. 2 relay from the luggage room relay block.

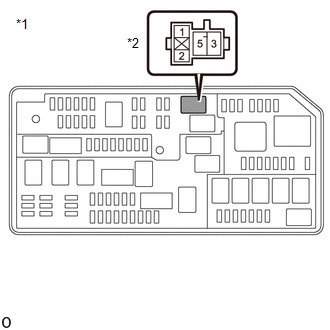

*1 Luggage Room Relay Block *2 IGCT NO. 2 Relay - Measure the resistance according to the value(s) in the table below.
*1 IGCT NO. 2 Relay Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 Auxiliary battery voltage not applied between terminals 1 and 2 10 kΩ or higher Auxiliary battery voltage applied between terminals 1 and 2 Below 1 Ω Result
Proceed to OK NG - Install the IGCT NO. 2 relay.
Result:
NG
REPLACE RELAY (IGCT NO. 2)
Result:
OK
See step 7
- Remove the IGCT NO. 2 relay from the luggage room relay block.
- CHECK HARNESS AND CONNECTOR (EV CONTROL ECU - LUGGAGE ROOM RELAY BLOCK)
- Disconnect the A8 and A17 EV control ECU connector.
- Remove the PM-IGCT fuse from the luggage room relay block.

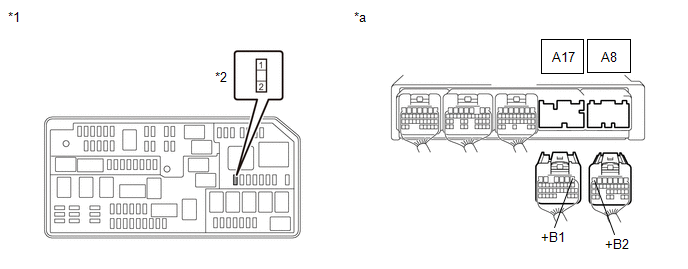

*1 Luggage Room Relay Block *2 PM-IGCT Fuse - Measure the resistance according to the value(s) in the table below.
*1 Luggage Room Relay Block *2 PM-IGCT Fuse *a Rear view of wire harness connector
(to EV Control ECU)- - Standard Resistance
Tester Connection Condition Specified Condition A17-1 (+B1) - 2 (PM-IGCT fuse holder) Ignition switch off Below 1 Ω A8-7 (+B2) - 2 (PM-IGCT fuse holder) Ignition switch off Below 1 Ω Result
Proceed to OK NG - Reconnect the A8 and A17 EV control ECU connector.
- Install the PM-IGCT fuse.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 8
- CHECK HARNESS AND CONNECTOR (LUGGAGE ROOM RELAY BLOCK)
- Remove the IGCT NO. 2 fuse, PM-IGCT fuse and IGCT NO. 2 relay from the luggage room relay block.

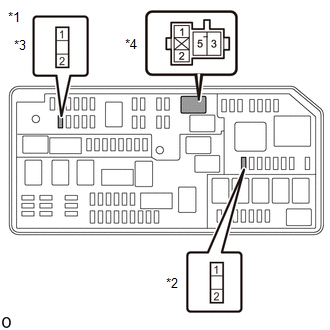

*1 Luggage Room Relay Block *2 PM-IGCT Fuse *3 IGCT NO. 2 Fuse *4 IGCT NO. 2 Relay - Measure the resistance according to the value(s) in the table below.
*1 Luggage Room Relay Block *2 PM-IGCT Fuse *3 IGCT NO. 2 Fuse *4 IGCT NO. 2 Relay Standard Resistance
Tester Connection Condition Specified Condition 3 (IGCT NO. 2 relay holder) - 2 (IGCT NO. 2 fuse holder) Ignition switch off Below 1 Ω 5 (IGCT NO. 2 relay holder) - 1 (PM-IGCT fuse holder) Ignition switch off Below 1 Ω Result
Proceed to OK NG - Install the IGCT NO. 2 fuse, PM-IGCT fuse and IGCT NO. 2 relay.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 9
- Remove the IGCT NO. 2 fuse, PM-IGCT fuse and IGCT NO. 2 relay from the luggage room relay block.
- CHECK HARNESS AND CONNECTOR (EV CONTROL ECU - LUGGAGE ROOM RELAY BLOCK)
- Disconnect the A8 EV control ECU connector.
- Remove the IGCT NO. 2 relay from the luggage room relay block.

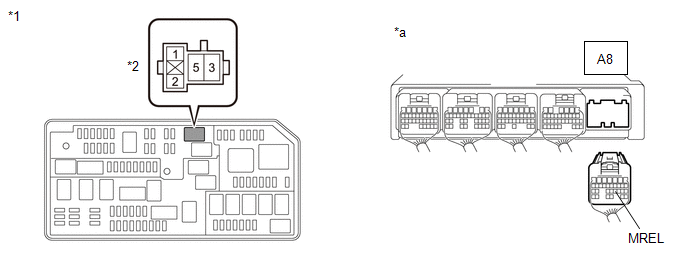

*1 Luggage Room Relay Block *2 IGCT NO. 2 Relay - Measure the resistance according to the value(s) in the table below.
*1 Luggage Room Relay Block *2 IGCT NO. 2 Relay *a Rear view of wire harness connector
(to EV Control ECU)- - Standard Resistance
Tester Connection Condition Specified Condition A8-21 (MREL) - 2 (IGCT NO. 2 relay holder) Ignition switch off Below 1 Ω A8-21 (MREL) or 2 (IGCT NO. 2 relay holder) - Body ground and other terminals Ignition switch off 10 kΩ or higher Result
Proceed to OK NG - Install the IGCT NO. 2 relay.
- Reconnect the A8 EV control ECU connector.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 10
- CHECK HARNESS AND CONNECTOR (LUGGAGE ROOM RELAY BLOCK - BODY GROUND)
- Remove the IGCT NO. 2 relay from the luggage room relay block.
*1 Luggage Room Relay Block *2 IGCT NO. 2 Relay - Measure the resistance according to the value(s) in the table below.
*1 Luggage Room Relay Block *2 IGCT NO. 2 Relay Standard Resistance
Tester Connection Condition Specified Condition 1 (IGCT NO. 2 relay holder) - Body ground Ignition switch off Below 1 Ω Result
Proceed to OK NG - Install the IGCT NO. 2 relay.
Result:
OK
CHECK FOR INTERMITTENT PROBLEMS. Refer to CHECK FOR INTERMITTENT PROBLEMS [11/2020 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Remove the IGCT NO. 2 relay from the luggage room relay block.
- CHECK HARNESS AND CONNECTOR (EV CONTROL ECU - LUGGAGE ROOM RELAY BLOCK)
- Remove the PM-IGCT fuse from the luggage room relay block.

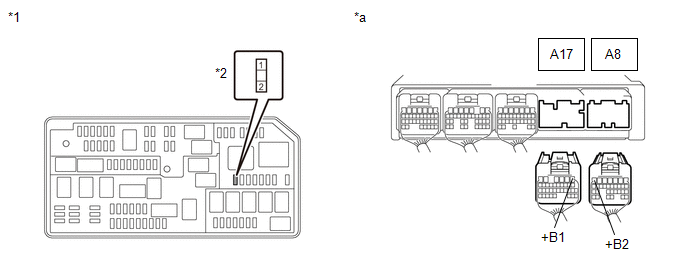

*1 Luggage Room Relay Block *2 PM-IGCT Fuse - Disconnect the A8 and A17 EV control ECU connector.
- Measure the resistance according to the value(s) in the table below.
*1 Luggage Room Relay Block *2 PM-IGCT Fuse *a Rear view of wire harness connector
(to EV Control ECU)- - Standard Resistance
Tester Connection Condition Specified Condition A17-1 (+B1) or 2 (PM-IGCT fuse holder) - Body ground and other terminals Ignition switch off 10 kΩ or higher A8-7 (+B2) or 2 (PM-IGCT fuse holder) - Body ground and other terminals Ignition switch off 10 kΩ or higher Result
Proceed to OK NG - Reconnect the A8 and A17 EV control ECU connector.
- Install the PM-IGCT fuse.
Result:
OK
REPLACE FUSE (PM-IGCT)
Result:
NG
See step 13
- Remove the PM-IGCT fuse from the luggage room relay block.
- CHECK HARNESS AND CONNECTOR (LUGGAGE ROOM RELAY BLOCK)
- Disconnect the IGCT NO. 2 fuse, PM-IGCT fuse and IGCT NO. 2 relay from the luggage room relay block.
*1 Luggage Room Relay Block *2 PM-IGCT Fuse *3 IGCT NO. 2 Fuse *4 IGCT NO. 2 Relay - Measure the resistance according to the value(s) in the table below.
*1 Luggage Room Relay Block *2 PM-IGCT Fuse *3 IGCT NO. 2 Fuse *4 IGCT NO. 2 Relay STANDARD RESISTANCE:Tester Connection Condition Specified Condition 3 (IGCT NO. 2 relay holder) or 2 (IGCT NO. 2 fuse holder) - Body ground and other terminals Ignition switch off 10 kΩ or higher 5 (IGCT NO. 2 relay holder) or 1 (PM-IGCT fuse holder) - Body ground and other terminals Ignition switch off 10 kΩ or higher Result
Proceed to OK NG - Install the IGCT NO. 2 fuse, PM-IGCT fuse and IGCT NO. 2 relay.
Result:
OK
REPLACE FUSE (IGCT NO. 2)
Result:
NG
See step 14
- Disconnect the IGCT NO. 2 fuse, PM-IGCT fuse and IGCT NO. 2 relay from the luggage room relay block.
- REPAIR OR REPLACE HARNESS OR CONNECTOR
Result
Proceed to NEXT Result:
NEXT
REPLACE FUSE (PM-IGCT)
- REPAIR OR REPLACE HARNESS OR CONNECTOR
Result
Proceed to NEXT Result:
NEXT
REPLACE FUSE (IGCT NO. 2)
