DTC P31DB-9E: AC Inverter Drive Signal Stuck On [11/2020 - 12/2022]: Procedure
- CHECK DTC OUTPUT (EV)
Pre-procedure1
- None.
- Check for DTCs.
Powertrain > EV > Trouble Codes
Result
Result Proceed to P31DB-9E only is output, or DTCs except the ones in the table below are also output. A Any of the DTCs in the table below are output B Malfunction Content Relevant DTC Microcomputer malfunction P0606-47 Hybrid/EV Powertrain Control Module Processor Watchdog / Safety MCU Failure P0606-87 Hybrid/EV Powertrain Control Module Processor to Monitoring Processor Missing Message P060A-47 Hybrid/EV Powertrain Control Module Monitoring Processor Watchdog / Safety MCU Failure P060A-87 Hybrid/EV Powertrain Control Module Processor from Monitoring Processor Missing Message P060B-49 Hybrid/EV Powertrain Control Module A/D Processing Internal Electronic Failure P060B-71 Hybrid/EV Powertrain Control Module A/D Processing Actuator Stuck P060B-1C Sensor Power Supply "A" Circuit / Open Circuit Voltage Out of Range P1CE3-49 Hybrid/EV Powertrain Control Module Monitoring Processor A/D Processing Internal Electronic Failure P1CE3-71 Hybrid/EV Powertrain Control Module Monitoring Processor A/D Processing Actuator Stuck P1CE3-1C Hybrid/EV Powertrain Control Module Monitoring Processor A/D Processing Voltage Out of Range P060A-45 Hybrid/EV Powertrain Control Module Monitoring Processor Program Memory Failure P060A-44 Hybrid/EV Powertrain Control Module Monitoring Processor Data Memory Failure P060A-29 Hybrid/EV Powertrain Control Module Monitoring Processor Signal Invalid P060A-49 Hybrid/EV Powertrain Control Module Monitoring Processor Internal Electronic Failure Power source circuit malfunction P0688-1F ECM/PCM Power Relay Sense Circuit Intermittent Sensor and actuator circuit malfunction P1CE6-11 AC Inverter Status Signal Circuit Short to Ground P1CE6-15 AC Inverter Status Signal Circuit Short to Auxiliary Battery or Open System malfunction P31D9-9F AC Inverter Status Signal Stuck Off P1C0F-96 AC Inverter Signal Line Component Internal Failure HINT:
- P31DB-9E may be output as a result of the malfunction indicated by the DTCs above.
- The chart above is listed in inspection order of priority.
- Check DTCs that are output at the same time by following the listed order. (The main cause of the malfunction can be determined without performing unnecessary inspections.)
- P31DB-9E may be output as a result of the malfunction indicated by the DTCs above.
Post-procedure1
- Turn the ignition switch off.
Result:
B
GO TO DTC CHART (HYBRID CONTROL SYSTEM). Refer To DIAGNOSTIC TROUBLE CODE CHART [11/2020 - 12/2022]
Result:
A
See step 2
- CHECK HARNESS AND CONNECTOR (IND, VAIN VOLTAGE)
Refer to PROCEDURE - Step 2
Result
Proceed to OK NG Result:
NG
See step 4
Result:
OK
See step 3
- CHECK HARNESS AND CONNECTOR (NOAC VOLTAGE) WARNING:
Be sure to wear insulated gloves and protective goggles.
Pre-procedure1
- Check that the service plug grip and FC converter power outlet cable are not installed.NOTE:
After removing the service plug grip and FC converter power outlet cable, do not turn the ignition switch to ON (READY), unless instructed by the repair Service Information because this may cause a malfunction.

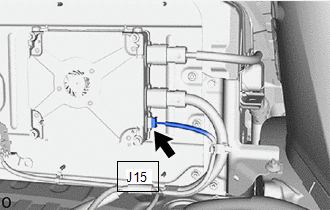

- Disconnect the J15 voltage inverter connector.NOTE:
If the J15 connector is disconnected with the auxiliary battery connected, P1CE6-15 may be detected. Therefore, check that the cable is disconnected from the negative (-) auxiliary battery terminal before starting the operation.
- Connect the cable to the negative (-) auxiliary battery terminal.
- Turn the ignition switch to ON (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition Result J15-10 (NOAC) - Body ground Ignition switch ON Below 1 V V *a Front view of wire harness connector
(to Voltage Inverter)NOTE:If the ignition switch is turned to ON (IG) with the voltage inverter connector disconnected, other DTCs will be stored. Therefore, clear the DTCs after checking.
Result
Proceed to OK NG
Post-procedure1
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- Reconnect the J15 voltage inverter connector.
Result:
OK
REPLACE VOLTAGE INVERTER. Refer to REMOVAL [11/2020 - 12/2022]
Result:
NG
See step 5
- Check that the service plug grip and FC converter power outlet cable are not installed.
- CHECK HARNESS AND CONNECTOR (IND, VAIN VOLTAGE) WARNING:
Be sure to wear insulated gloves and protective goggles.
Pre-procedure1
- Check that the service plug grip and FC converter power outlet cable are not installed.NOTE:
After removing the service plug grip and FC converter power outlet cable, do not turn the ignition switch to ON (READY), unless instructed by the repair Service Information because this may cause a malfunction.
- Disconnect the J15 voltage inverter connector.NOTE:
If the J15 connector is disconnected with the auxiliary battery connected, P1CE6-15 may be detected. Therefore, check that the cable is disconnected from the negative (-) auxiliary battery terminal before starting the operation.
- Connect the cable from the negative (-) auxiliary battery terminal.
- Turn the ignition switch to ON (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition Result A8-27 (ACIM) - Body ground Ignition switch ON 4 V or higher V A17-11 (VAIN) - Body ground Ignition switch ON 4 V or higher V *a Front view of wire harness connector
(to EV Control ECU)NOTE:If the ignition switch is turned to ON with the voltage inverter connector disconnected, other DTCs will be stored. Therefore, clear the DTCs after checking.
Result
Proceed to OK NG
Post-procedure1
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- Reconnect the J15 voltage inverter connector.
Result:
OK
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
NG
REPLACE EV CONTROL ECU. Refer to REMOVAL [11/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 12/2022]
- Check that the service plug grip and FC converter power outlet cable are not installed.
- CHECK HARNESS AND CONNECTOR (NOAC VOLTAGE) WARNING:
Be sure to wear insulated gloves and protective goggles.
Pre-procedure1
- Check that the service plug grip and FC converter power outlet cable are not installed.NOTE:
After removing the service plug grip and FC converter power outlet cable, do not turn the ignition switch to ON (READY), unless instructed by the repair Service Information because this may cause a malfunction.
- Disconnect the J15 voltage inverter connector.NOTE:
If the J15 connector is disconnected with the auxiliary battery connected, P1CE6-15 may be detected. Therefore, check that the cable is disconnected from the negative (-) auxiliary battery terminal before starting the operation.
- Connect the cable from the negative (-) auxiliary battery terminal.
- Turn the ignition switch to ON (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition Result A8-12 (NOAC) - Body ground Ignition switch ON Below 1 V V *a Rear view of wire harness connector
(to EV Control ECU)NOTE:If the ignition switch is turned to ON with the voltage inverter connector disconnected, other DTCs will be stored. Therefore, clear the DTCs after checking.
Result
Proceed to OK NG
Post-procedure1
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- Reconnect the J15 voltage inverter connector.
Result:
OK
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
NG
REPLACE VOLTAGE INVERTER. Refer to REMOVAL [11/2020 - 12/2022]
- Check that the service plug grip and FC converter power outlet cable are not installed.
