DTC P0E2D-00: Hybrid/EV Battery Energy Control Module Hybrid/EV Battery Monitor Performance [11/2020 - 12/2022]: Wiring Diagram

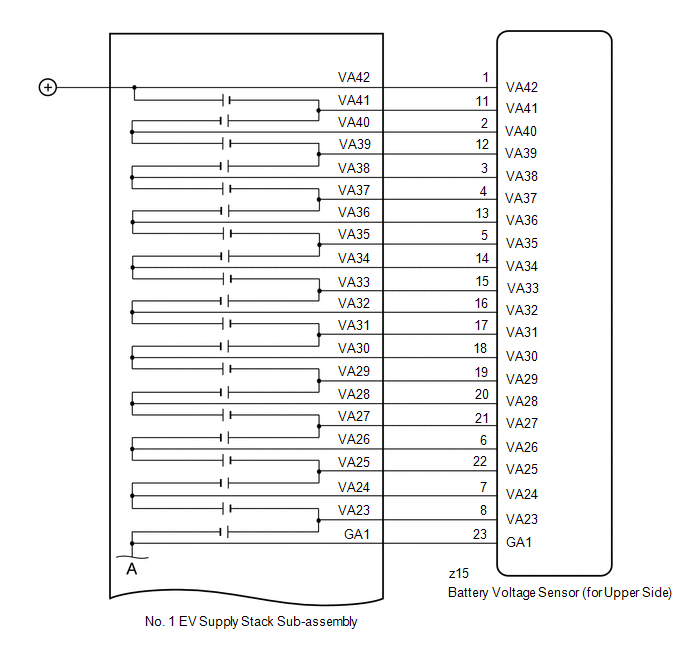

GTY972550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

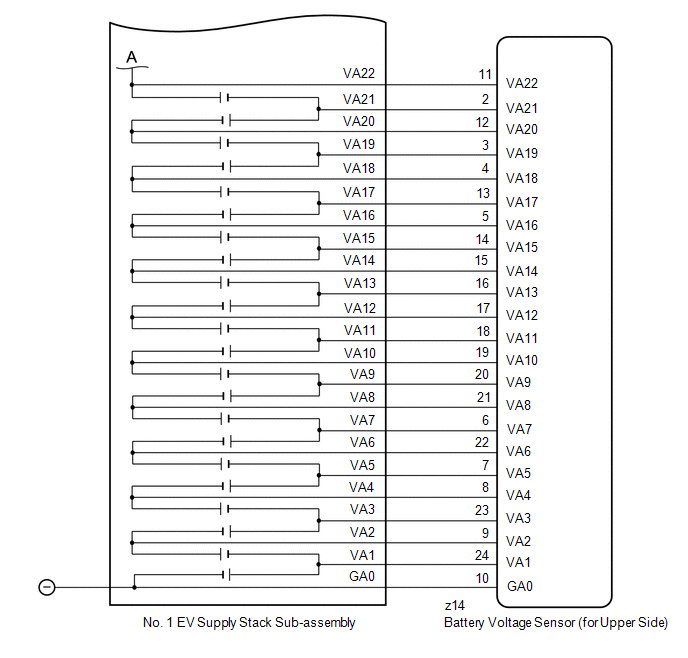

GTY972600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

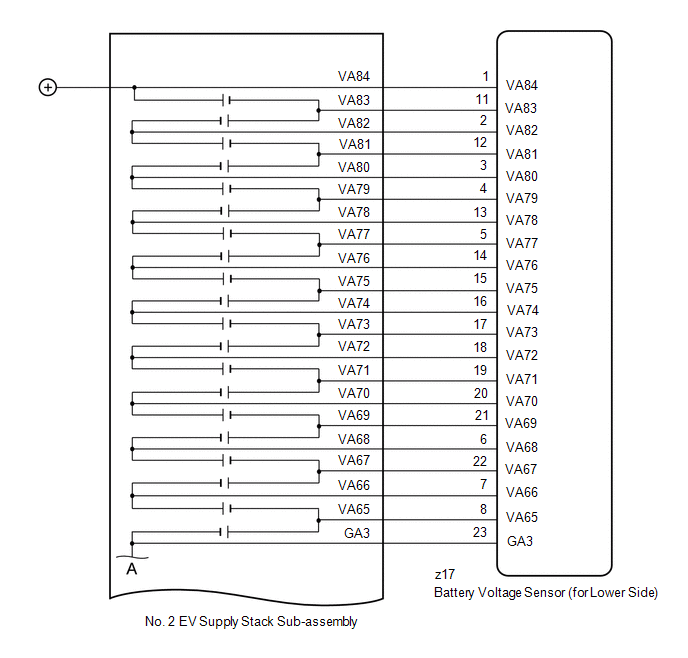

GTY972552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

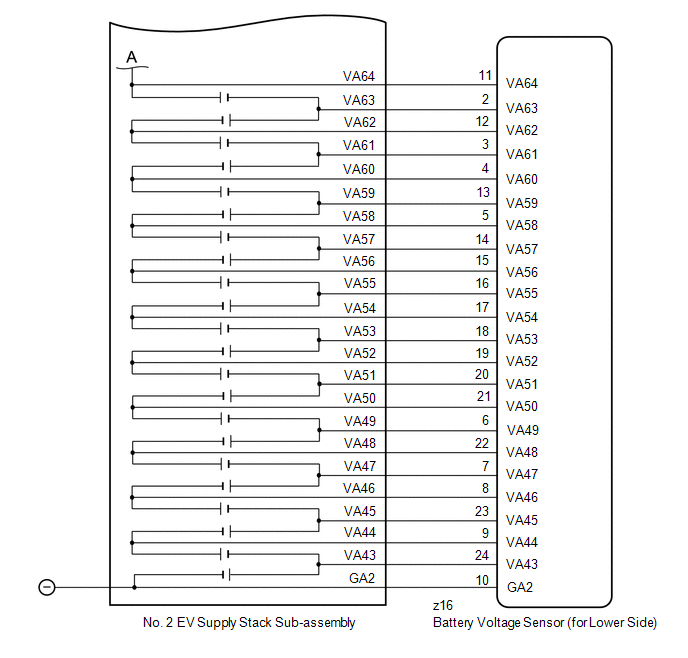

GTY972599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

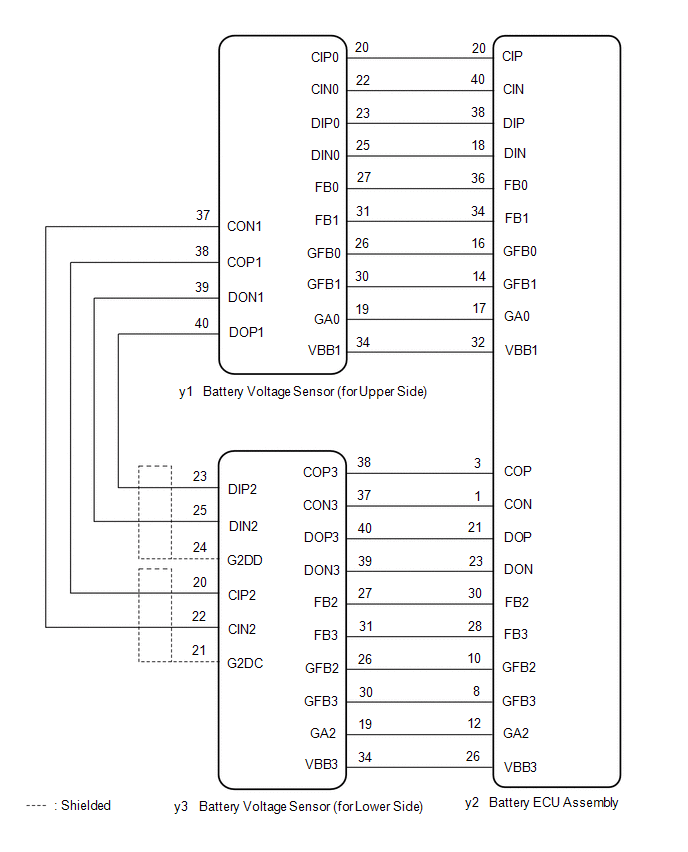

GTY972523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
