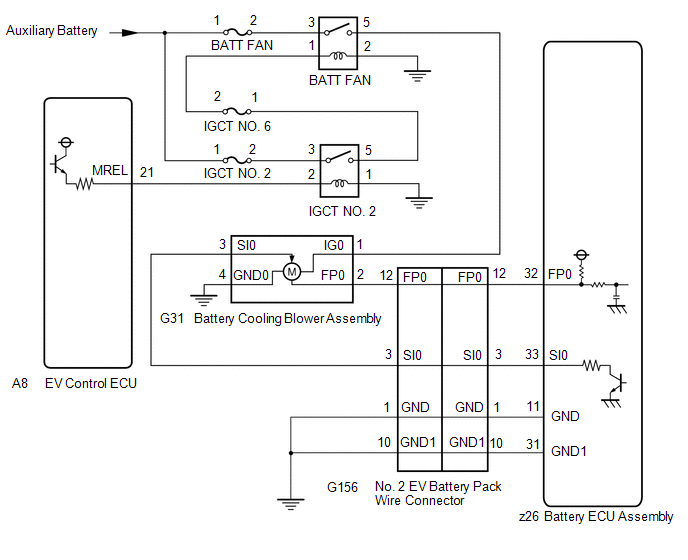

DTC P0A81-11: Hybrid/EV Battery Cooling Fan 1 Circuit Short to Ground; DTC P0A81-4B: Hybrid/EV Battery Cooling Fan 1 Over Temperature [11/2020 - 12/2022]: Wiring Diagram

GTY972474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
