Removal [11/2020 - ]: Procedure

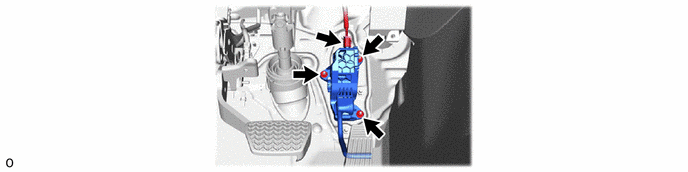

REMOVE ACCELERATOR PEDAL (WITH SENSOR) ROD ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Avoid excessive force to the accelerator pedal (with sensor) rod assembly.
Do not disassemble the accelerator pedal (with sensor) rod assembly.
This accelerator pedal does not require lubrication.
Do not apply oil or lubricant to the accelerator pedal (with sensor) rod assembly.

If applied, the accelerator pedal (with sensor) rod assembly must be replaced.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

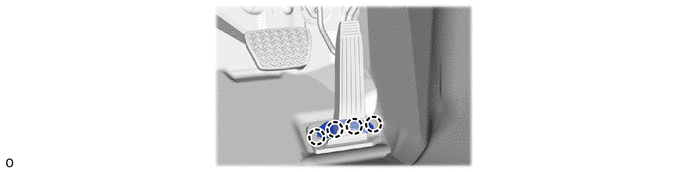

REMOVE ACCELERATOR PEDAL PAD

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

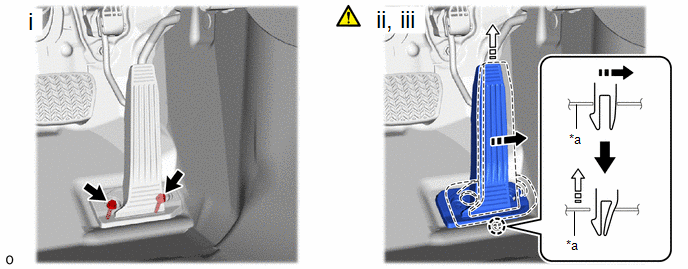

REMOVE ACCELERATOR PEDAL ASSEMBLY

*a	Vehicle Body	-	-
	Remove in this Direction (1)		Remove in this Direction (2)

Remove the 2 bolts.
Push the accelerator pedal assembly in the direction indicated by the arrow (1) shown in the illustration to disengage the claw.
Pull the accelerator pedal assembly in the direction indicated by the arrow (2) shown in the illustration to remove it.
