Removal [11/2020 - ]: Procedure

  1. REMOVE ACCELERATOR PEDAL ASSEMBLY

    Refer to REMOVAL [11/2020 - ]

  2. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY WITH HEATER BRACKET

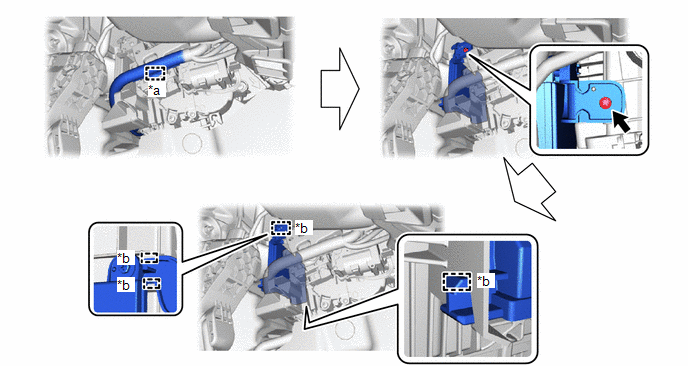

    1. GTY991093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp *b Guide
    2. GTY992578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY
    1. GTY990822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Heater Bracket - -
