Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Toyota Mirai, 2023 Toyota Mirai, and 2022 Toyota Mirai. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT WHEEL
Refer to REMOVAL [11/2020 - 12/2023] , or refer to REMOVAL [12/2023 - ]

REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

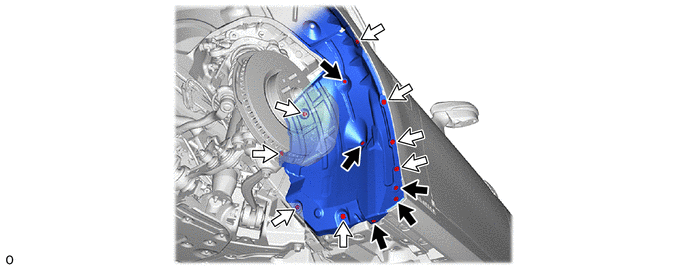

Screw

Clip

REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the front fender moulding sub-assembly LH using the following procedure.
1.Put protective tape around the front fender moulding sub-assembly LH.

2.Using moulding remover A, detach the clip and remove the front fender moulding sub-assembly LH.

REMOVE SIDE LIDAR ADVANCED DRIVE SENSOR ASSEMBLY LH WITH BRACKET

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

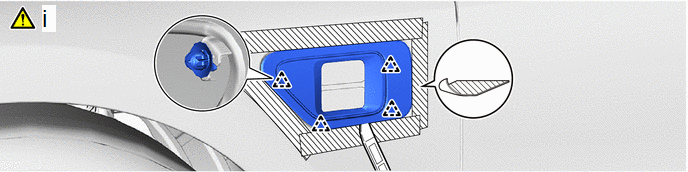

Put protective tape to the position of the illustration.
HINT:

Use non-residue protective tape.

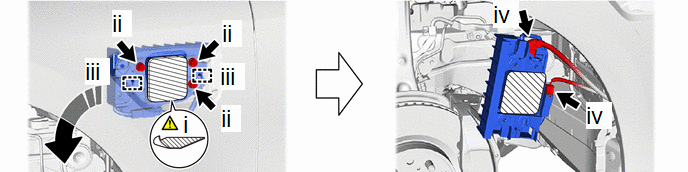

Remove the 3 bolts.
Detach the hook and pull out side LiDAR advanced drive sensor assembly LH with bracket shown in the illustration.
Disconnect the 2 connectors and remove the side LiDAR advanced drive sensor assembly LH with bracket.

REMOVE SIDE LIDAR ADVANCED DRIVE SENSOR ASSEMBLY LH

NOTE:

The side LiDAR advanced drive sensor assembly LH is a precision instrument. Take care not to damage it during removal and installation.

*a	Clamp	*b	Guide
	Remove in this Direction	-	-
