Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Toyota Mirai, 2023 Toyota Mirai, and 2022 Toyota Mirai. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL SIDE LIDAR ADVANCED DRIVE SENSOR ASSEMBLY LH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • Do not hold only by the brackets.
    • The side LiDAR advanced drive sensor assembly LH is a precision instrument. Take care not to damage it during removal and installation.
    • If the lens surface of the side LiDAR advanced drive sensor assembly LH is dirty, install the side LiDAR advanced drive sensor assembly LH after cleaning it with a soft cloth or the like while taking care not to damage it.

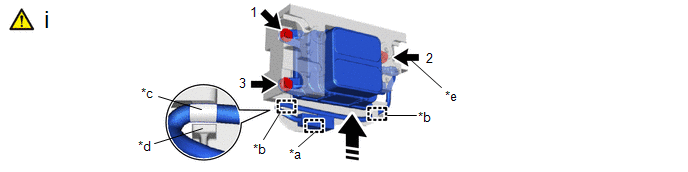

    1. Fig 1: Side LiDAR Advanced Drive Sensor Assembly LH Tightening Sequence
      GTY1162440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp *b Guide
      *c White Tape *d Bracket Tithing Part
      *e Bolt A - -
      Install in this Direction - -
      1. Install the side LiDAR advanced drive sensor assembly LH using the following procedure.

        1. Temporarily install the Bolt A.

        2. Install the side LiDAR advanced drive sensor assembly LH with the 3 bolts in the order shown in the illustration.

        NOTE:

        When installing the side LiDAR advanced drive sensor assembly LH, be sure not to pressed down the sensor to prevent rattling.

        Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

        3. Attach the connector clamp and insert the wire harness into the guide as shown in the illustration.

        4. Check that the bracket fitting part is within the range of the white tape length.

  2. INSTALL SIDE LIDAR ADVANCED DRIVE SENSOR ASSEMBLY LH WITH BRACKET

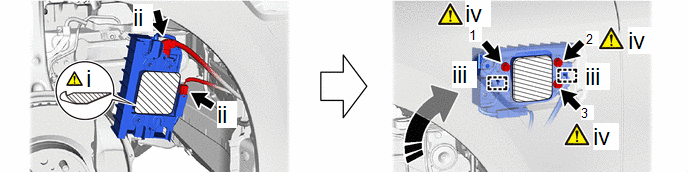

    1. Fig 2: Side LiDAR Advanced Drive Sensor Assembly LH With Bracket Tightening Sequence
      GTY1161426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
      1. Put protective tape to the position of the illustration.

        HINT:

        Use non-residue protective tape.

      2. Connect the 2 connectors.
      3. Attach the hook and temporarily install the side LiDAR advanced drive sensor assembly LH with bracket shown in the illustration.
      4. Install the side LiDAR advanced drive sensor assembly LH with bracket with the 3 bolts in the order as shown in the illustration.

        Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

        NOTE:

        Make sure the positioning bracket is securely attached.

      5. Remove the protective tape on the side LiDAR advanced drive sensor assembly LH surface.
  3. INSTALL FRONT FENDER MOULDING SUB-ASSEMBLY LH
  4. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH
  5. INSTALL FRONT WHEEL

    Refer to INSTALLATION [11/2020 - ]

  6. ADJUST SIDE LIDAR ADVANCED DRIVE SENSOR ASSEMBLY LH

    Refer to ADJUSTMENT [11/2021 - ]
