Removal [12/2023 - ]: Procedure
WARNING: This page is about a different car, the 2024 Toyota Mirai, 2023 Toyota Mirai, and 2022 Toyota Mirai. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE FRONT BUMPER ASSEMBLY
Refer to REMOVAL [12/2023 - ]

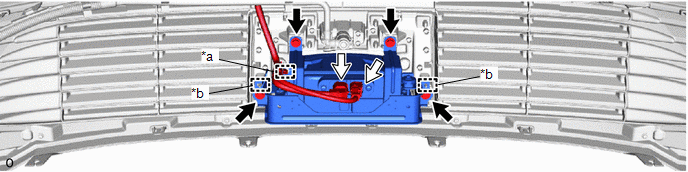

- REMOVE FRONT LIDAR ADVANCED DRIVE SENSOR ASSEMBLY NOTE:
- Do not hold only by the brackets.
- The front LiDAR advanced drive sensor assembly is a precision instrument. Take care not to damage it during removal and installation.
- If the lens surface of the front LiDAR advanced drive sensor assembly is dirty, install the front LiDAR advanced drive sensor assembly after cleaning it with a soft cloth or the like while taking care not to damage it.
