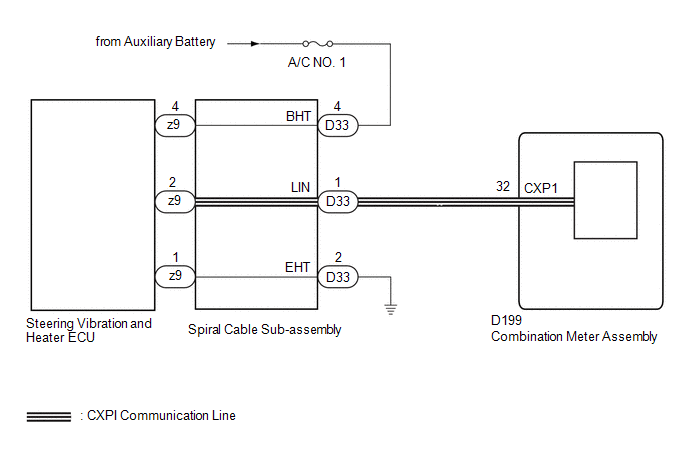

DTC B1512-87: Lost Communication with Steering Switch Control Module Missing Message [12/2023 - ]: Wiring Diagram

GTY1208914

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
