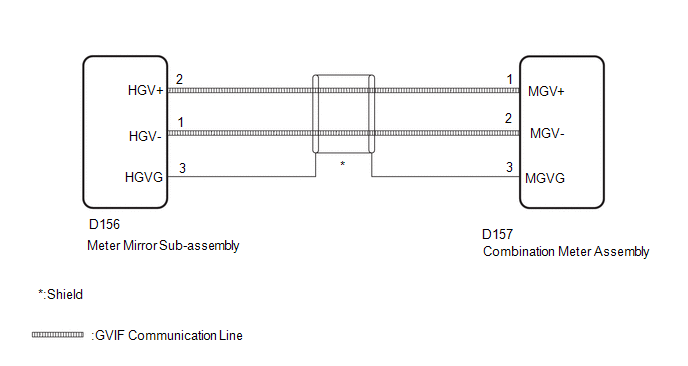

DTC B1510-87: Lost Communication with HUD Gigabit Video Interface Missing Message [11/2021 - 12/2023]: Wiring Diagram

GTY1166051

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
