Meter / Gauge System - Diagnostic Codes (2 Of 3)
>>
Meter / Gauge System
>>
DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [12/2023 - ]
>>

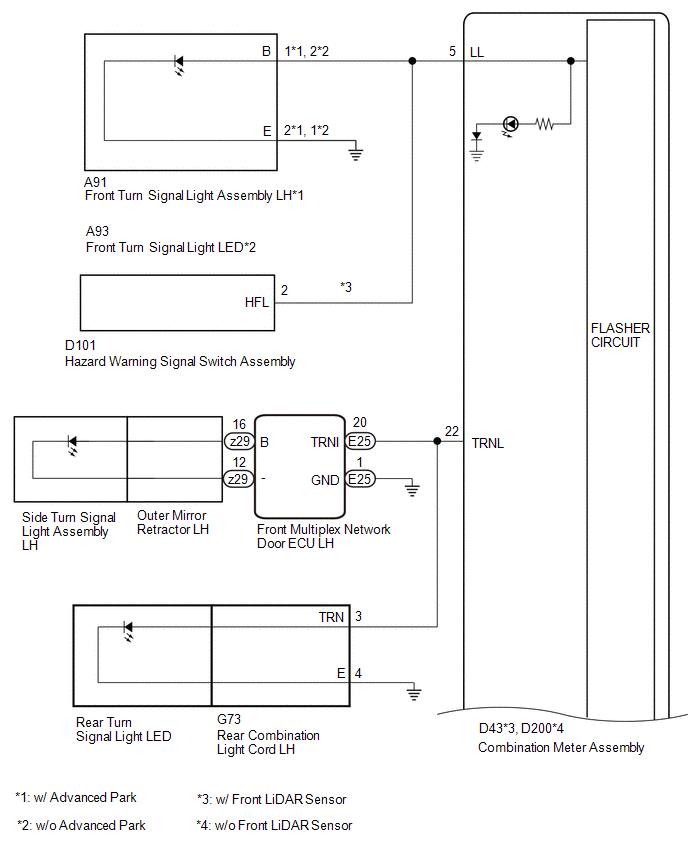

Wiring Diagram
DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [12/2023 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
