DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [11/2021 - 12/2023]: Wiring Diagram

  1. w/o Advanced Drive

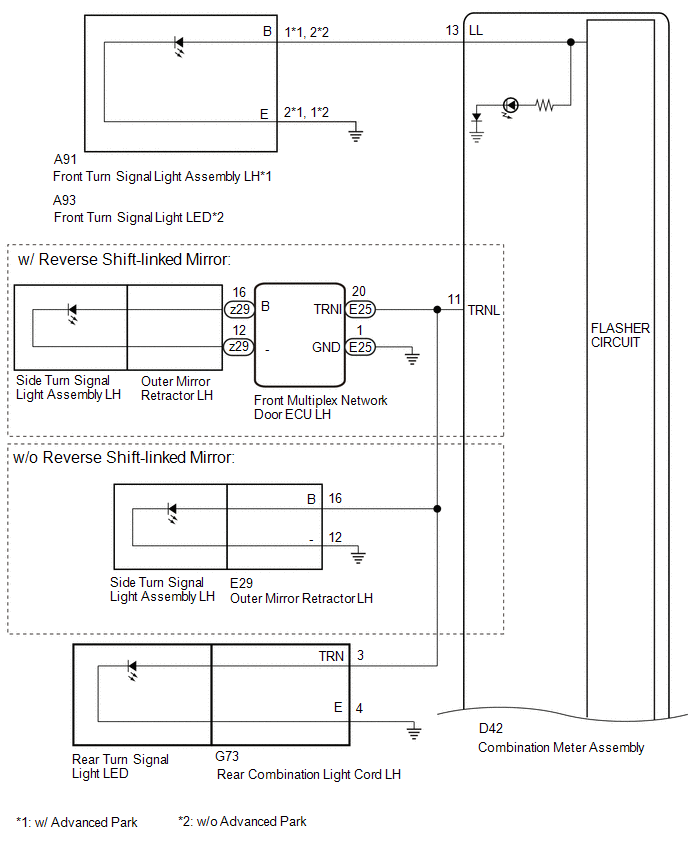

    GTY1167328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

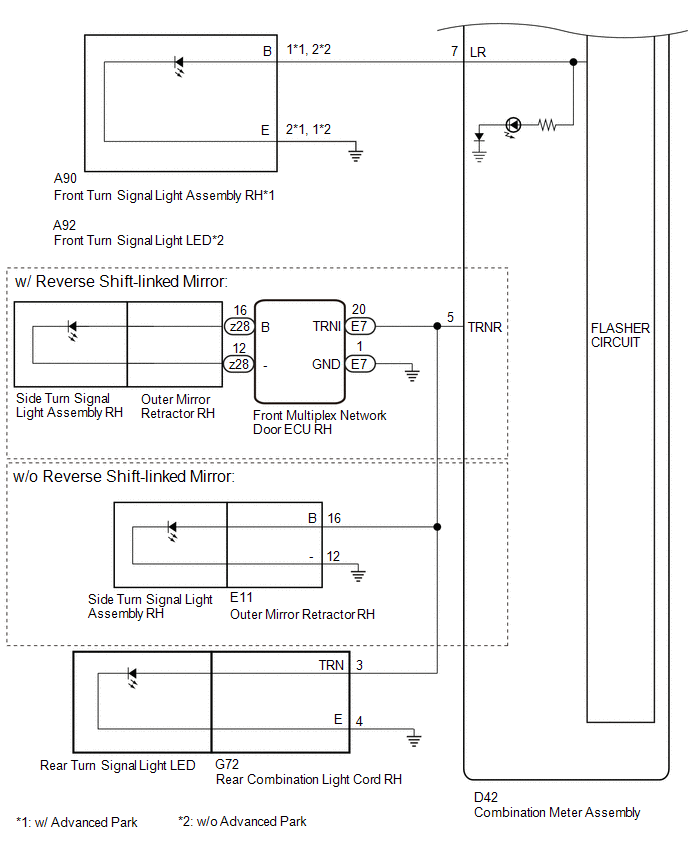

    GTY1162831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Advanced Drive

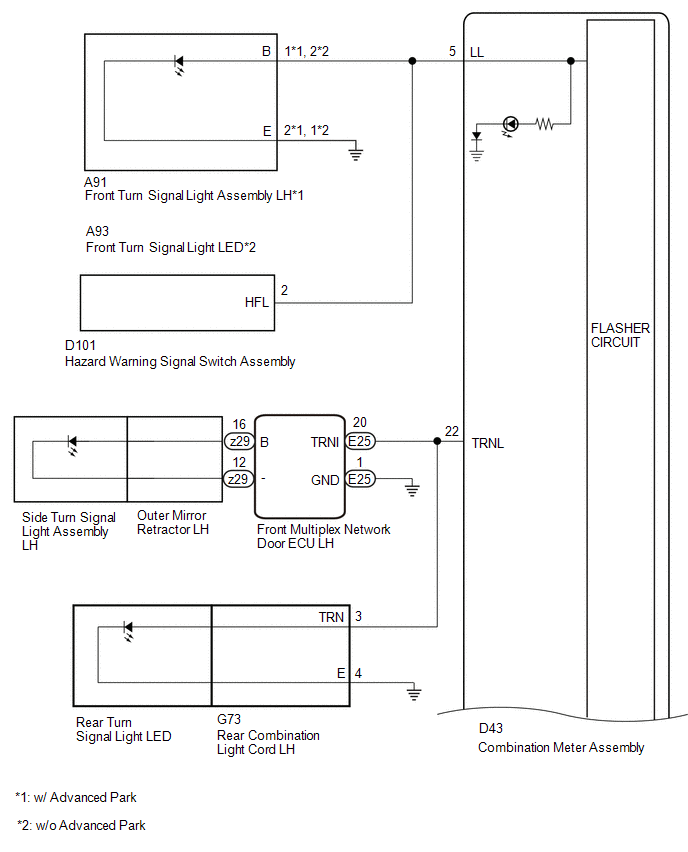

    GTY1162308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

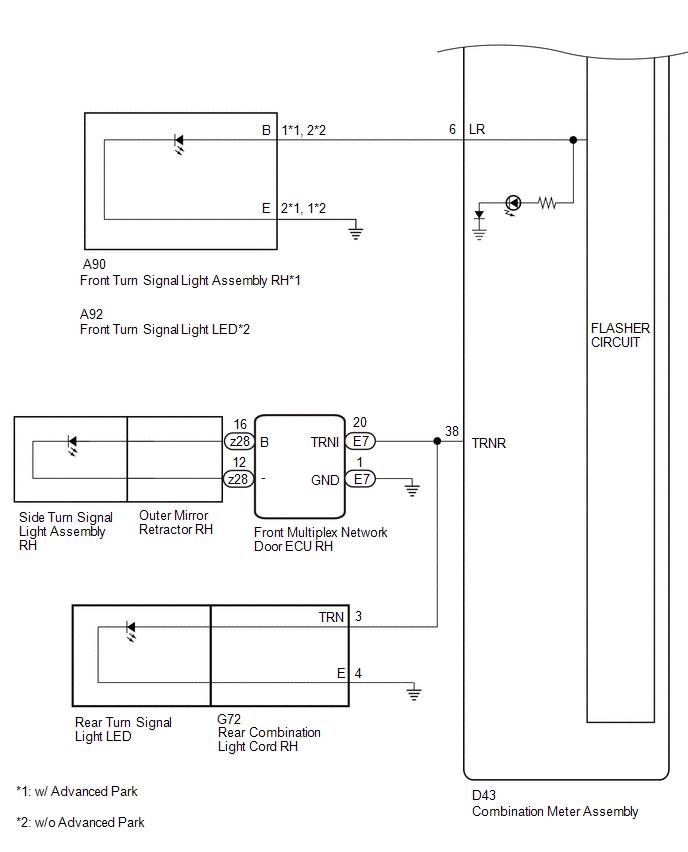

    GTY1163220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
