DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [11/2020 - 11/2021]: Wiring Diagram

  1. w/o Advanced Drive

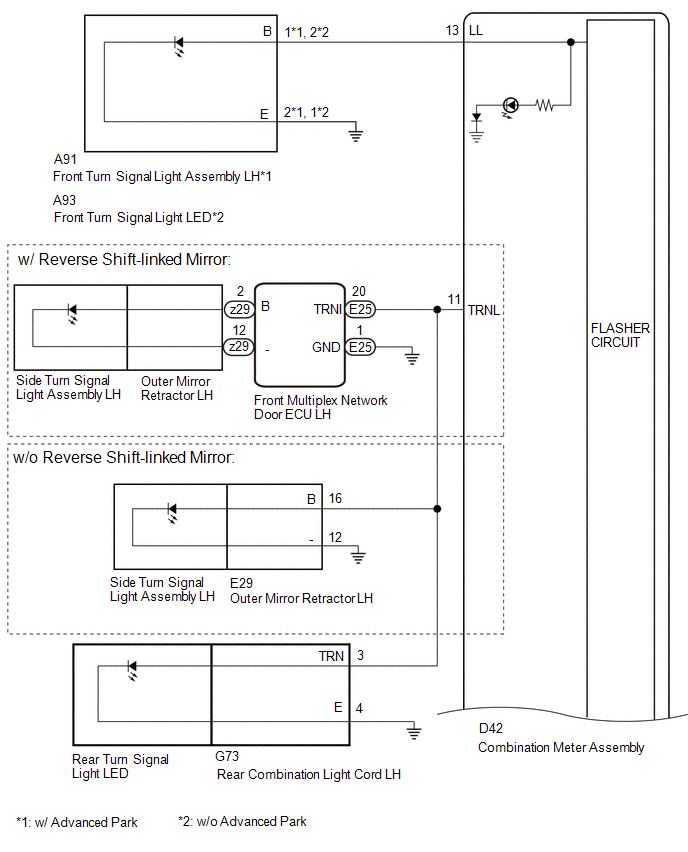

    GTY1018271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

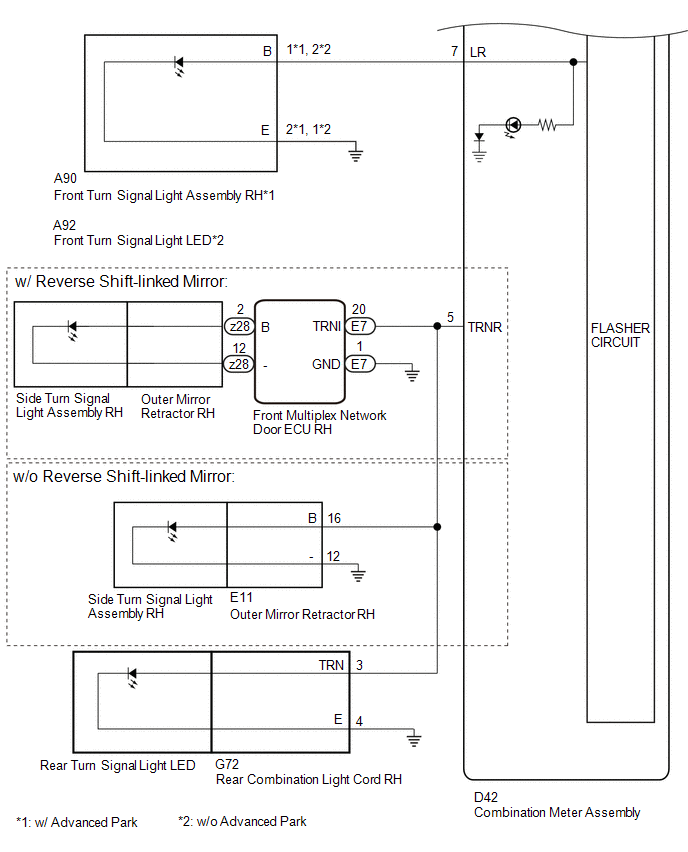

    GTY1018059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Advanced Drive

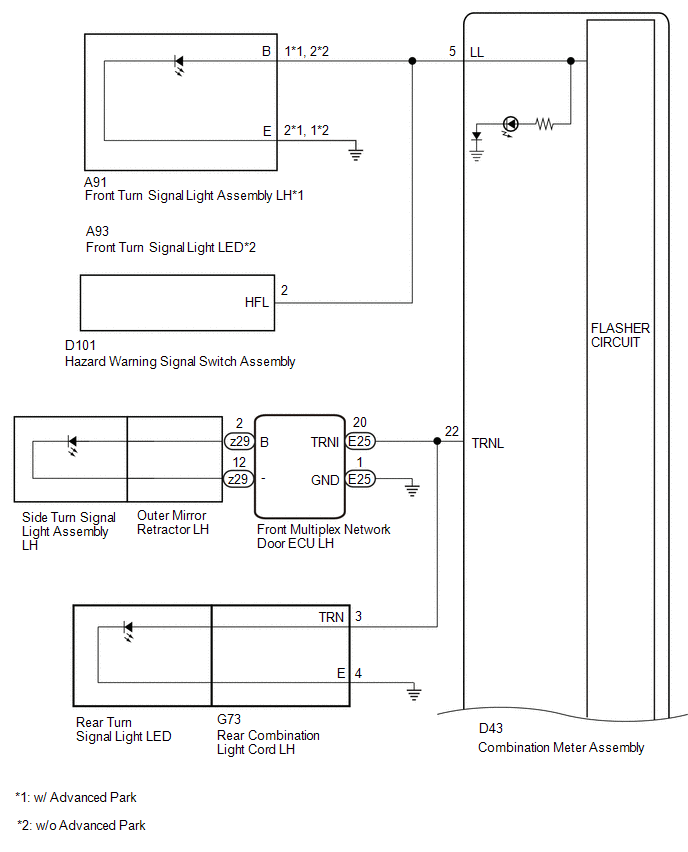

    GTY1017966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

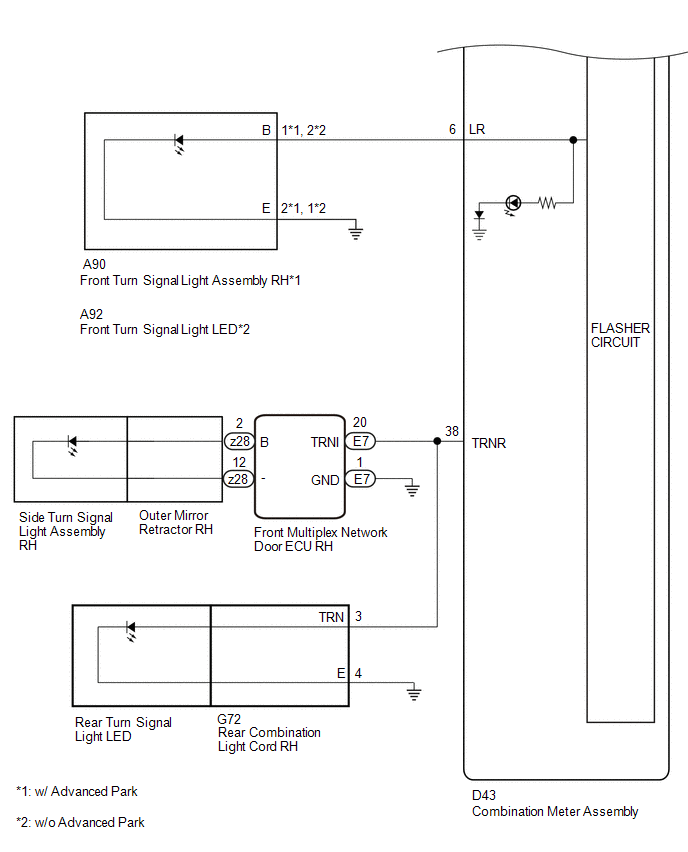

    GTY1016486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
