DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [12/2023 - ]: Wiring Diagram

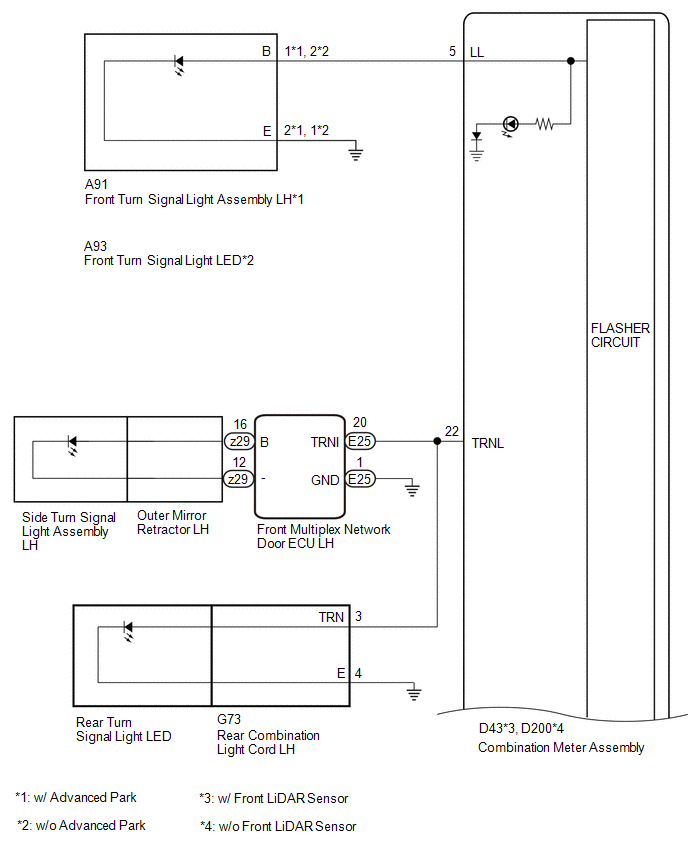

GTY1209360

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

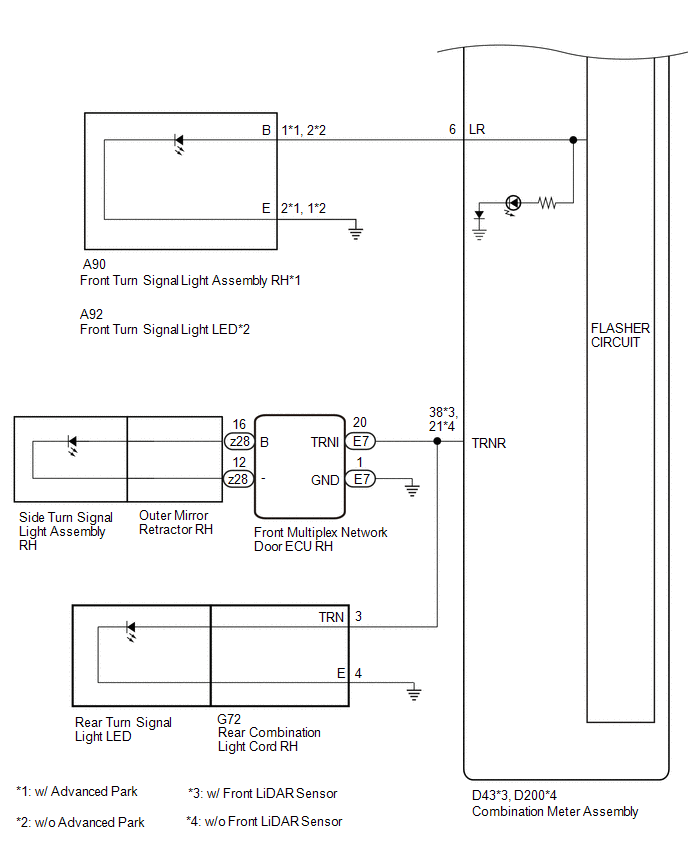

GTY1209565

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
