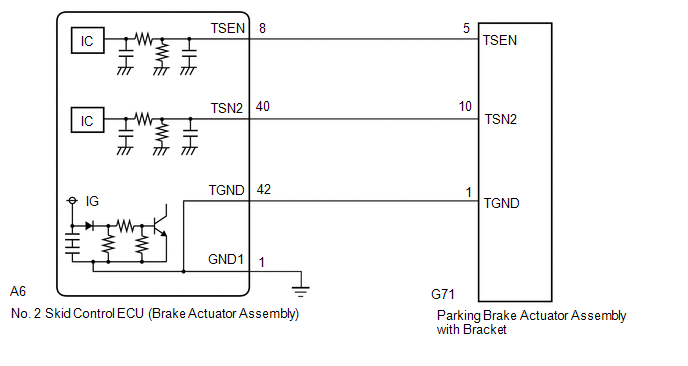

DTC C112A-62: Electric Parking Brake Tension Sensor "A/B" Correlation Signal Compare Failure [11/2020 - ]: Wiring Diagram

GTY980079

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
