DTC C112A-62: Electric Parking Brake Tension Sensor "A/B" Correlation Signal Compare Failure [11/2020 - ]: Procedure
- CHECK HARNESS AND CONNECTOR (NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) - PARKING BRAKE ACTUATOR ASSEMBLY WITH BRACKET)
Pre-procedure1
- Turn the ignition switch off.
- Disconnect the A6 No. 2 skid control ECU (brake actuator assembly) connector.
- Disconnect the G71 parking brake actuator assembly with bracket connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition Result A6-8 (TSEN) - G71-5 (TSEN) Always Below 1 Ω Ω A6-40 (TSN2) - G71-10 (TSN2) Always Below 1 Ω Ω A6-42 (TGND) - G71-1 (TGND) Always Below 1 Ω Ω A6-8 (TSEN) or G71-5 (TSEN) - Body ground Always 10 kΩ or higher kΩ A6-40 (TSN2) or G71-10 (TSN2) - Body ground Always 10 kΩ or higher kΩ A6-42 (TGND) or G71-1 (TGND) - Body ground Always 10 kΩ or higher kΩ Result
Proceed to OK NG
Post-procedure1
- None
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 2
- INSPECT PARKING BRAKE ACTUATOR ASSEMBLY WITH BRACKET (TENSION SENSOR)
Pre-procedure1
- Turn the ignition switch to ON.
- Measure the voltage according to the value(s) in the table below.

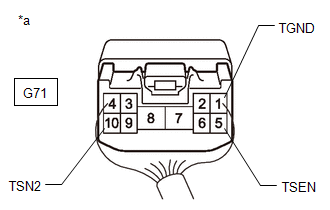

*a Component with harness connected
(Parking Brake Actuator Assembly with Bracket)Standard Voltage
Tester Connection Condition Specified Condition Result G71-1 (TGND) - G71-5 (TSEN) Ignition switch ON 0.35 to 4.5 V V G71-1 (TGND) - G71-10 (TSN2) Ignition switch ON 0.35 to 4.5 V V Result
Proceed to OK NG
Post-procedure1
- None
Result:
OK
REPLACE NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY). Refer to REMOVAL [11/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 12/2022] , or refer to REMOVAL [12/2022 - 12/2023] , or refer to REMOVAL [12/2023 - ]
Result:
NG
REPLACE PARKING BRAKE ACTUATOR ASSEMBLY WITH BRACKET. Refer to REMOVAL [11/2020 - 11/2021] , or refer to REMOVAL [11/2021 - 12/2022] , or refer to REMOVAL [12/2022 - 12/2023] , or refer to REMOVAL [12/2023 - ]
