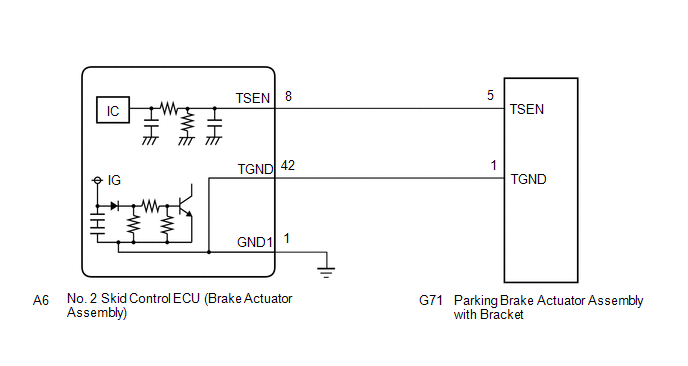

DTC C1120-12: Electric Parking Brake Tension Sensor "A" Circuit Short to Battery [11/2020 - ]: Wiring Diagram

GTY979944

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
