DTC C0609-62: Electric Parking Brake Switch Signal Compare Failure [12/2022 - ]: Wiring Diagram

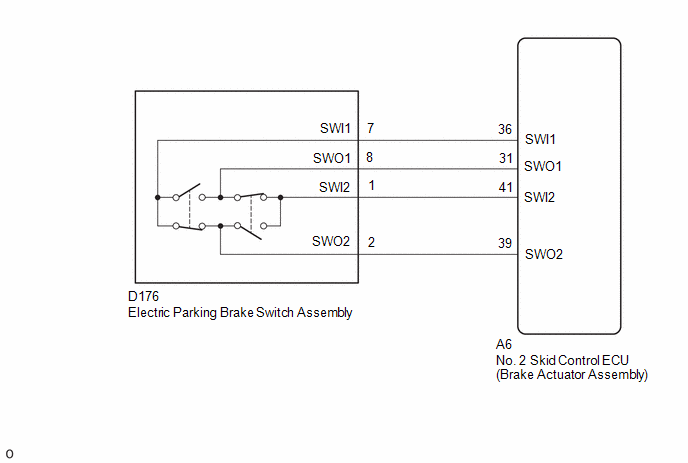

Fig 1: DTC C0609-62: Electric Parking Brake Switch Signal Compare Failure [12/2022 - ]
GTY1163239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
