DTC C0609-62: Electric Parking Brake Switch Signal Compare Failure [11/2020 - 12/2022]: Wiring Diagram

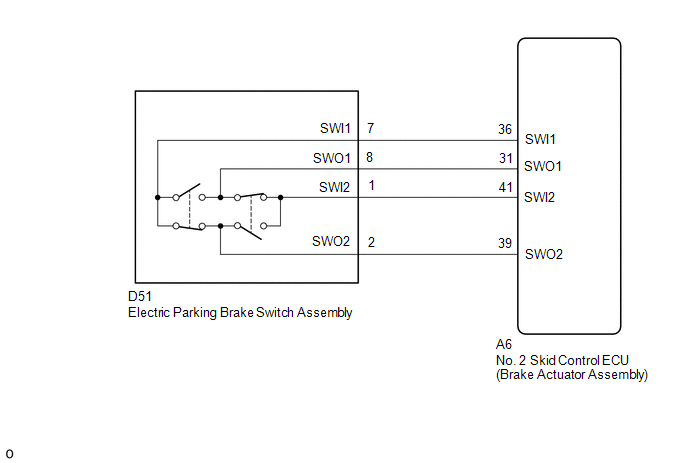

Fig 1: DTC C0609-62: Electric Parking Brake Switch Signal Compare Failure [11/2020 - 12/2022]
GTY972355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
