Electronically Controlled Brake System - Diagnostic Codes (4 Of 4), Circuit Tests, Symptom Tests
>>
Electronically Controlled Brake System
>>
VSC OFF Switch Circuit [11/2020 - 12/2023]
>>
Wiring Diagram

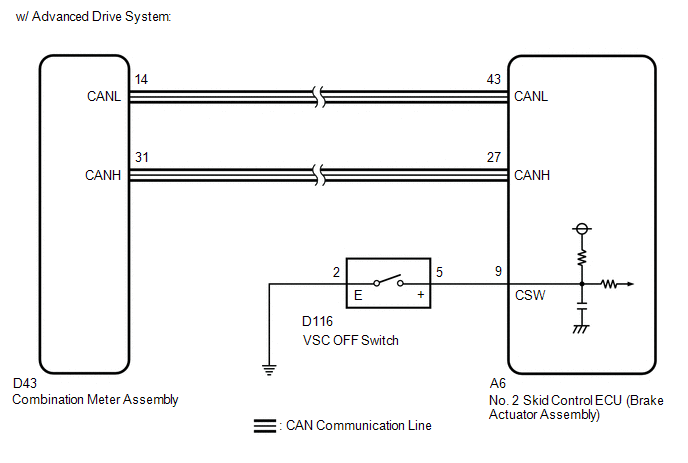

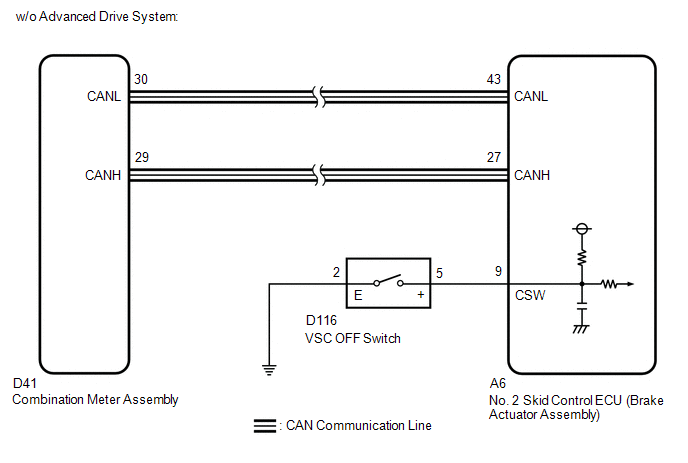

VSC OFF Switch Circuit [11/2020 - 12/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
