Brake Hold Standby Indicator Light Circuit [12/2022 - 12/2023]: Wiring Diagram

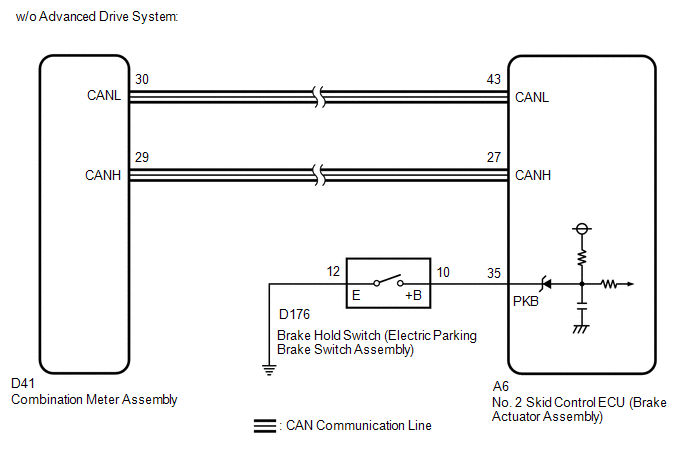

GTY1163270

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

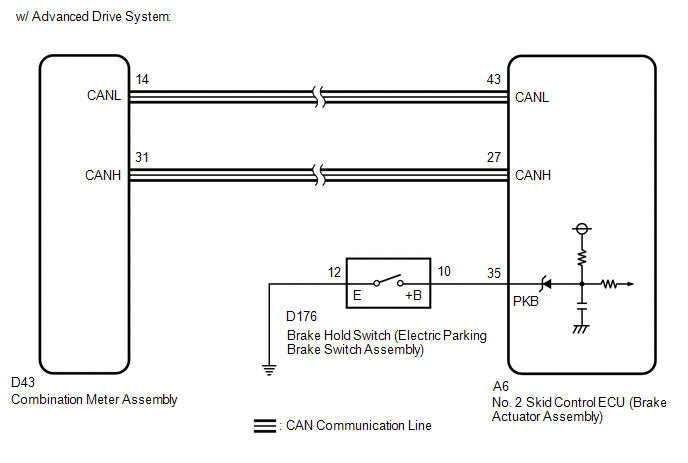

GTY1163269

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
