Brake Hold Standby Indicator Light Circuit [11/2020 - 12/2022]: Wiring Diagram

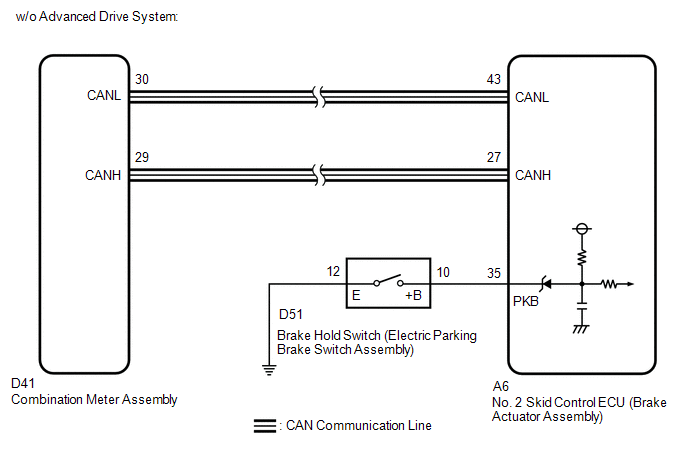

GTY974693

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

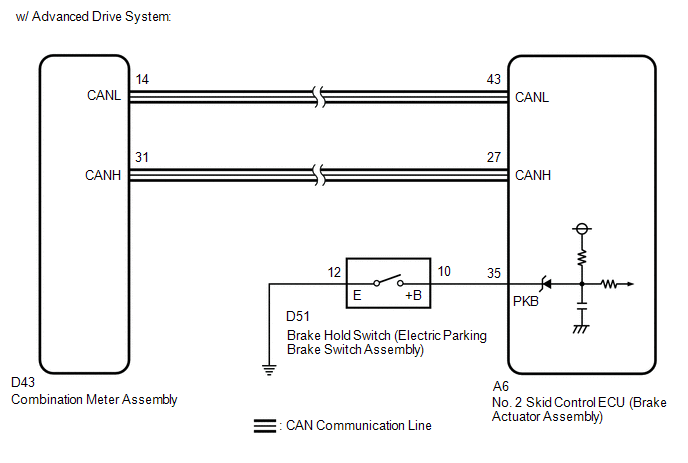

GTY974759

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
