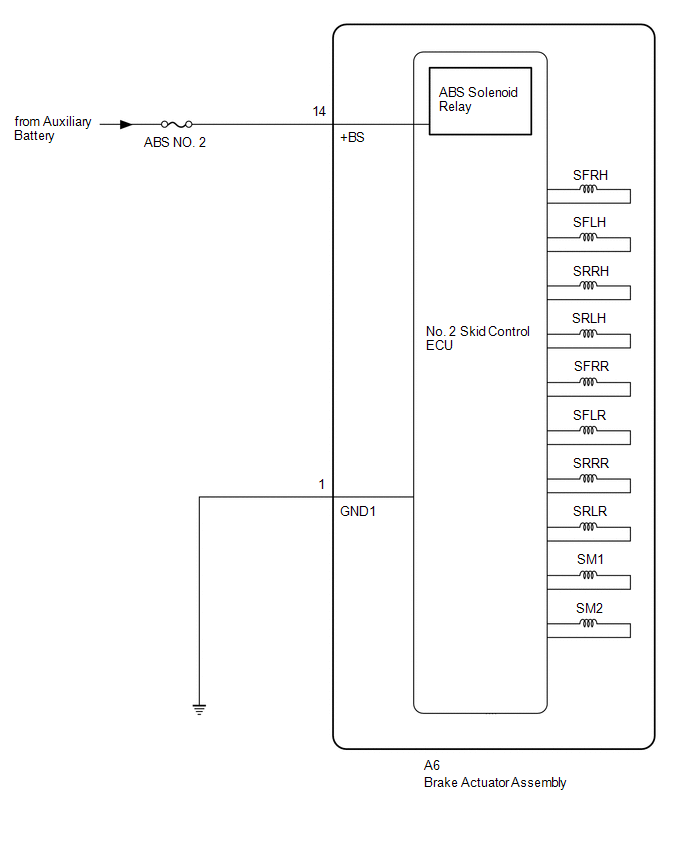

DTC C143A-7E: ABS Solenoid Control Actuator Stuck On; DTC C143A-7F: ABS Solenoid Control Actuator Stuck Off [11/2020 - ]: Wiring Diagram

GTY1018840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
