DTC C1380-7E: Stop Lamp Relay Actuator Stuck On [12/2023 - ]: Wiring Diagram

w/ Front LiDAR Sensor

GTY979974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

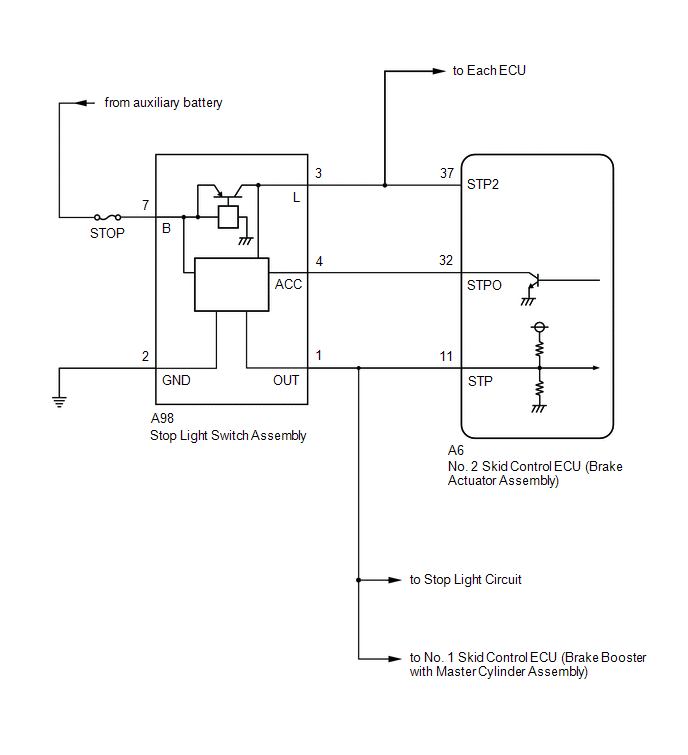

w/o Front LiDAR Sensor

GTY1210130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
