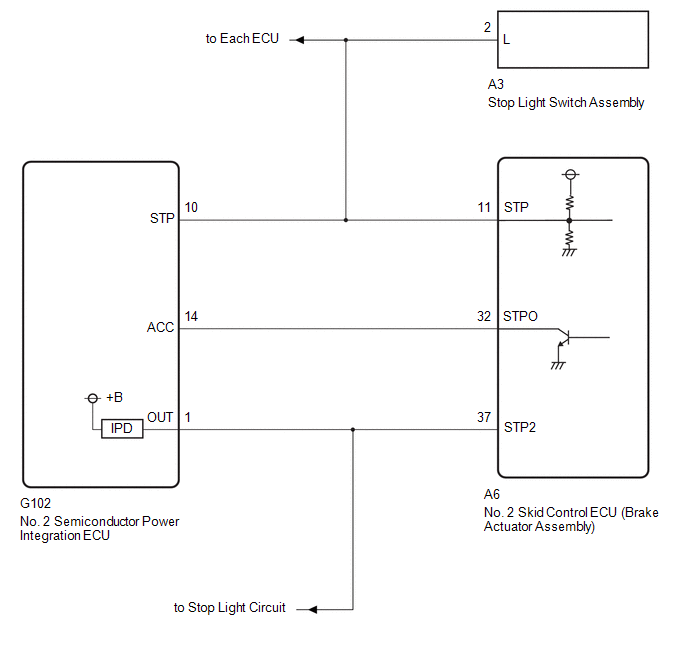

DTC C1380-7E: Stop Lamp Relay Actuator Stuck On [11/2020 - 12/2023]: Wiring Diagram

GTY979974

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
