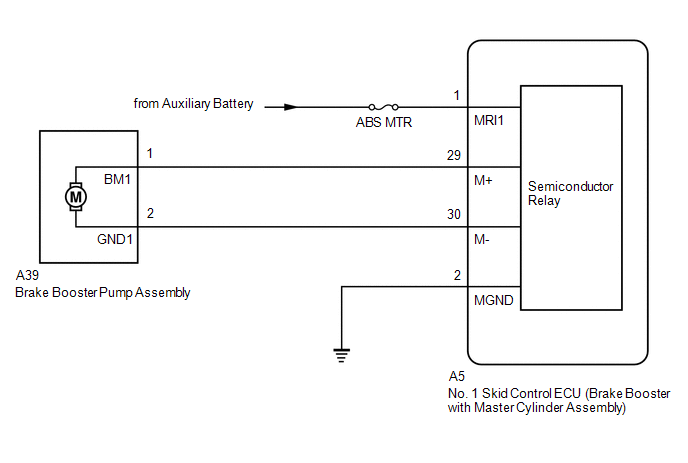

DTC C0594-00: Brake Booster Motor "A" Performance [11/2020 - ]: Wiring Diagram

GTY974626

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
