COMPONENTS (REMOVAL)

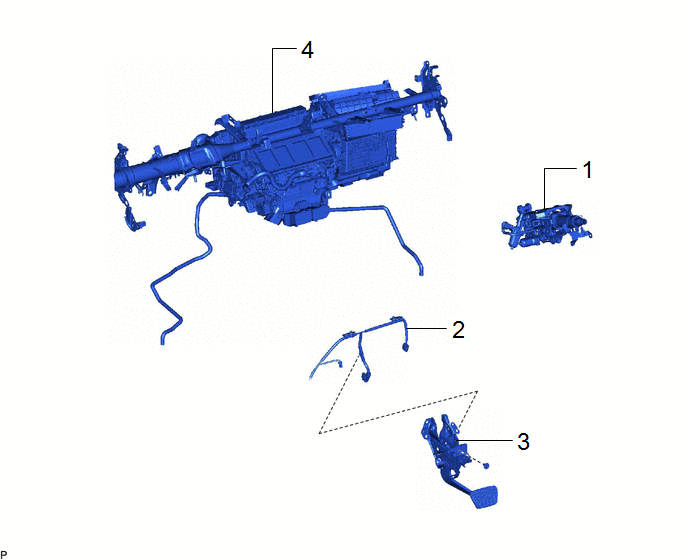

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | STEERING COLUMN ASSEMBLY | 45250 | - | - | - |
| 2 | FRONT COMPARTMENT MAIN WIRE | 82111C | - | - | - |
| 3 | DISCONNECT BRAKE PEDAL SUPPORT ASSEMBLY | 47110 | - | - | - |
| 4 | INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONING UNIT ASSEMBLY | - | - | - | - |

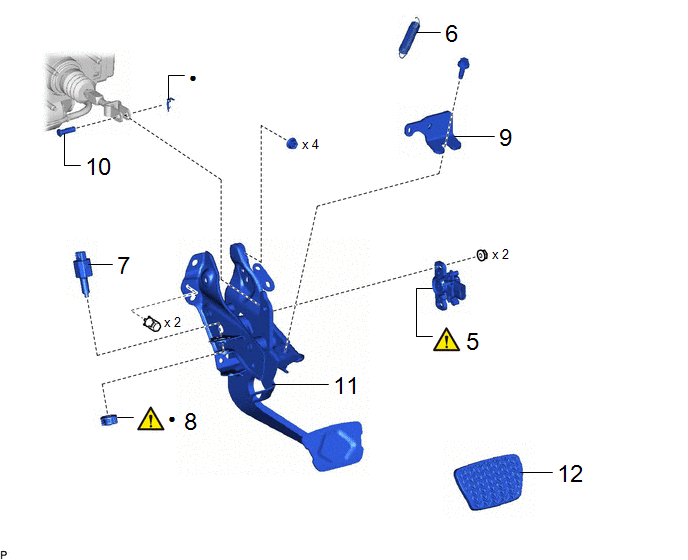

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 5 | BRAKE PEDAL STROKE SENSOR ASSEMBLY | 89510D | See step 5 | - | - |
| 6 | BRAKE PEDAL RETURN SPRING | 47101A | - | - | - |
| 7 | STOP LIGHT SWITCH ASSEMBLY | 84340 | - | - | - |
| 8 | STOP LIGHT SWITCH MOUNTING ADJUSTER | 84345 | See step 8 | - | - |
| 9 | BRAKE PEDAL SUPPORT REINFORCEMENT | 55179 | - | - | - |
| 10 | PUSH ROD PIN | 47264A | - | - | - |
| 11 | REMOVE BRAKE PEDAL SUPPORT ASSEMBLY | 47110 | - | - | - |
| 12 | BRAKE PEDAL PAD | 47121 | - | - | - |
| • | Non-reusable part | - | - |
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during brake pedal support assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Disconnect cable from negative (-) auxiliary battery terminal | Memorize steering angle neutral point | Parking assist monitor system | Refer to INITIALIZATION [11/2020 - 12/2022] |
| Panoramic view monitor system | Refer to INITIALIZATION [11/2020 - 12/2022] | ||
|
Perform "Calibration" |
|
Refer to UTILITY [11/2020 - ] |
| Brake pedal stroke sensor assembly adjustment | Electronically controlled brake system malfunctions | ||
| Steering sensor (Including removal and installation) | Steering angle neutral point | Parking assist monitor system | Refer to CALIBRATION [11/2020 - 12/2022] |
| Panoramic view monitor system | Refer to CALIBRATION [11/2020 - 12/2022] |
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
HINT:
When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Lane tracing assist system (for Stereo camera type) Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. for Stereo Camera Type:
Refer to INITIALIZATION [11/2021 - ]
for Mono Camera Type:
Refer to INITIALIZATION [11/2020 - 12/2023]Lane tracing assist system (for Mono camera type) Pre-collision system (for Stereo camera type) Pre-collision system (for Mono camera type) Lighting system (EXT) Advanced drive system Drive the vehicle straight ahead at a vehicle speed of 35 km/h or higher for 30 seconds* or more. Refer to INITIALIZATION [11/2021 - ] *: This can be completed by doing this for 30 seconds continuously or for a total of 30 seconds intermittently.
- Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Air conditioning system After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized. -
