COMPONENTS (INSTALLATION)

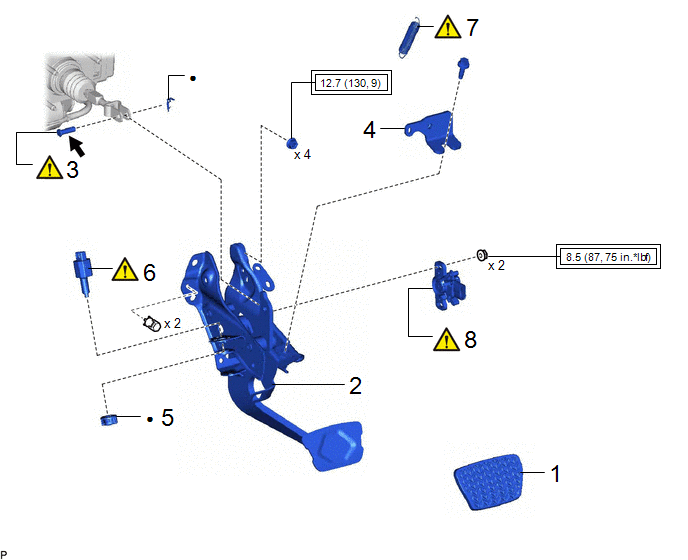

Fig 1: Brake Pedal Installation Components With Torque Specifications [11/2020 - 12/2023] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	BRAKE PEDAL PAD	47121	-	-	-
2	BRAKE PEDAL SUPPORT ASSEMBLY	47110	-	-	-
3	PUSH ROD PIN	47264A	See step 3	-	-
4	TEMPORARILY INSTALL BRAKE PEDAL SUPPORT REINFORCEMENT	55179	-	-	-
5	STOP LIGHT SWITCH MOUNTING ADJUSTER	84345	-	-	-
6	STOP LIGHT SWITCH ASSEMBLY	84340	See step 6	-	-
7	BRAKE PEDAL RETURN SPRING	47101A	See step 7	-	-
8	BRAKE PEDAL STROKE SENSOR ASSEMBLY	89510D	See step 8	-	-

	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
	Lithium soap base glycol grease	-	-

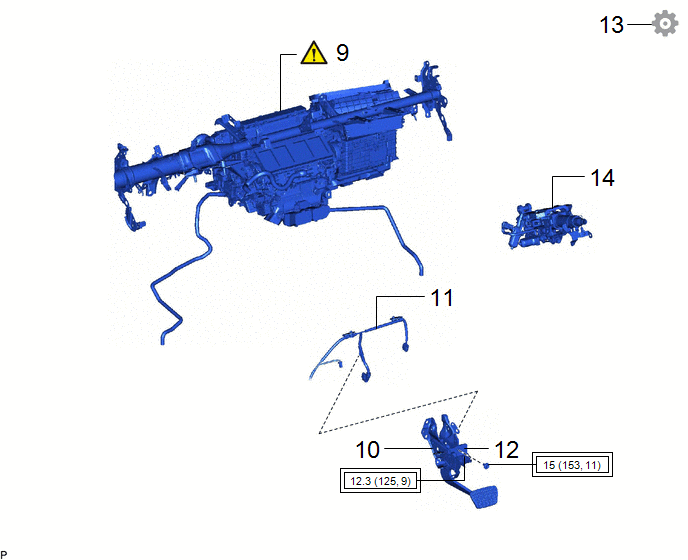

Fig 2: Brake Pedal Installation Components With Torque Specifications [11/2020 - 12/2023] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9	INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONING UNIT ASSEMBLY	-	See step 9	-	-
10	CONNECT BRAKE PEDAL SUPPORT ASSEMBLY	47110	-	-	-
11	FRONT COMPARTMENT MAIN WIRE	82111C	-	-	-
12	INSTALL BRAKE PEDAL SUPPORT REINFORCEMENT	55179	-	-	-
13	INSPECT AND ADJUST BRAKE PEDAL HEIGHT	-	-	-	See step 13
14	STEERING COLUMN ASSEMBLY	45250	-	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)

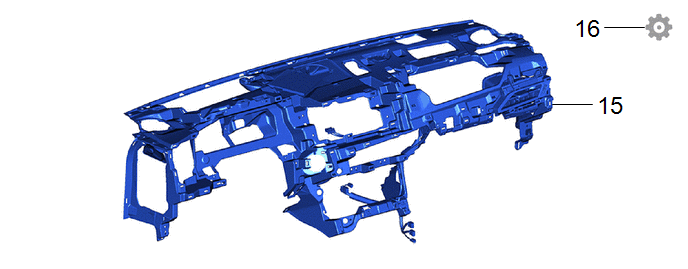

Fig 3: Brake Pedal Installation Components With Torque Specifications [11/2020 - 12/2023] (3 Of 3)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15	INSTRUMENT PANEL SAFETY PAD ASSEMBLY	55400	-	-	-
16	INSPECT AND ADJUST BRAKE PEDAL	-	-	-	See step 16
