Installation [11/2020 - 12/2022]: Procedure

  1. INSTALL NO. 1 WIRE CLAMP BRACKET
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    Perform this procedure only when replacement of the No. 1 wire clamp bracket is necessary.

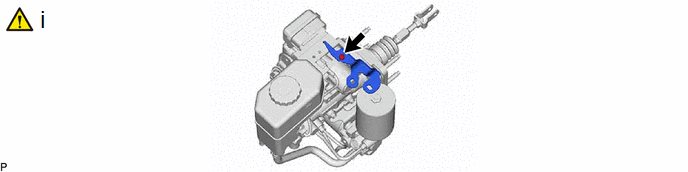

    1. GTY981277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a 5 mm long hexagon socket wrench, install the No. 1 wire clamp bracket with the bolt.

        Torque: 6.6 N.m (67 kgf/cm, 58 in.lbf)

  2. INSTALL NO. 2 RESERVOIR HOSE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    Perform this procedure only when replacement of the No. 2 reservoir hose is necessary.

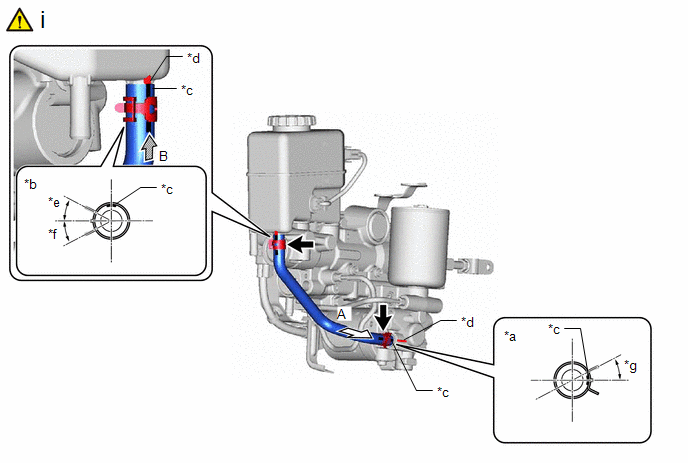

    1. GTY980585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b View B
      *c Paint Mark *d Rib
      *e within 40° *f within 70°
      *g within 45° - -
      1. Install the No. 2 reservoir hose, and slide the 2 clips to secure it.
        NOTE:
        • Make sure that the paint mark is facing the front of the vehicle (Upper Side).
        • Make sure that the paint mark is outside of the vehicle (Lower Side).
        • Install the clip within the range shown in the illustration.
  3. INSTALL NO. 1 RESERVOIR HOSE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    Perform this procedure only when replacement of the No. 1 reservoir hose is necessary.

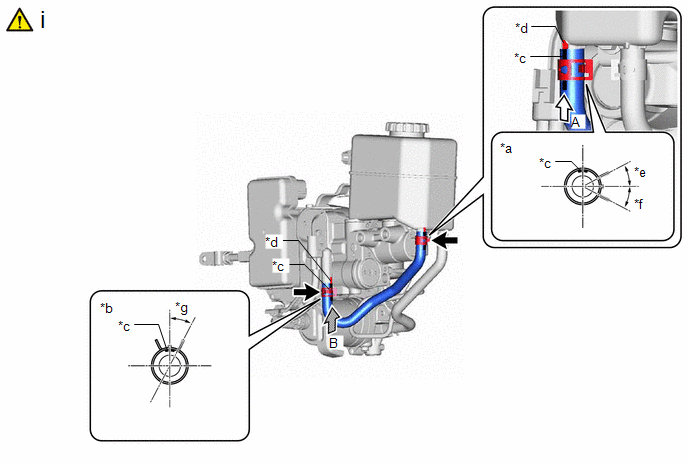

    1. GTY980676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b View B
      *c Paint Mark *d Rib
      *e within 40° *f within 70°
      *g within 45° - -
      1. Install the No. 1 reservoir hose, and slide the 2 clips to secure it.
        NOTE:
        • Make sure that the paint mark is facing the front of the vehicle.
        • Install the clip within the range shown in the illustration.
  4. INSTALL BRAKE MASTER CYLINDER GASKET
  5. INSTALL BRAKE BOOSTER BRACKET
  6. INSTALL BRAKE MASTER CYLINDER GASKET
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    The booster bracket stopper ring is used as a jig during assembly at the factory.When installing the brake booster assembly, it is not necessary to install a booster bracket stopper ring.
  7. INSTALL BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY

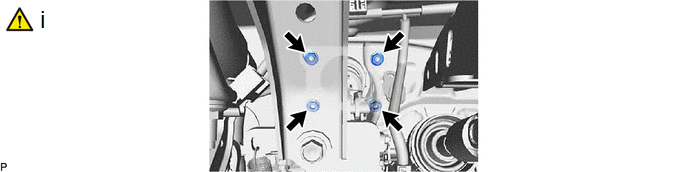

    1. GTY980767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the brake booster with master cylinder assembly with the 4 nuts.

        Torque: 12.7 N.m (130 kgf/cm, 9 ft.lbf)

        NOTE:
        • Do not apply excessive force to the brake lines.
        • Be careful not to allow brake fluid to enter the connector.
        • If installing a new brake booster with master cylinder assembly, do not remove the hole plugs before connecting the brake lines because the brake booster with master cylinder assembly is filled with brake fluid.
        • Do not carry the brake booster with master cylinder assembly by the parts shown in the illustration.

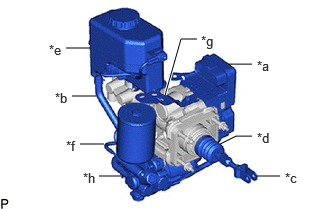

          GTY981390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
          *a No. 1 Skid Control ECU
          *b No. 1 Reservoir Hose and No. 2 Reservoir Hose
          *c Master Cylinder Push Rod Clevis
          *d Boot
          *e Brake Master Cylinder Reservoir
          *f No. 1 Brake Actuator Tube
          *g No. 1 Wire Clamp Bracket
          *h Brake Booster with Accumulator Pump Assembly
  8. CONNECT FRONT COMPARTMENT MAIN WIRE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • Make sure that the connector is locked securely.
    • Make sure that the connector can be connected smoothly.
    • Do not allow water, oil or dirt to enter the connector.
  9. INSTALL PUSH ROD PIN
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  3
  10. INSTALL STOP LIGHT SWITCH ASSEMBLY

    Refer to INSTALLATION [11/2020 - 12/2023]

  11. INSTALL BRAKE PEDAL RETURN SPRING
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  7
  12. INSTALL NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13

  13. INSTALL NO. 2 HEATER TO REGISTER DUCT
  14. INSTALL AIR DUCT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  15. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to INSTALLATION [11/2020 - 12/2022]

  16. INSTALL BRAKE ACTUATOR WITH BRACKET

    Refer to INSTALLATION [11/2020 - 12/2022]

  17. FILL RESERVOIR WITH BRAKE FLUID
  18. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to INSTALLATION [11/2020 - 12/2022]

  19. UPDATE ECU SECURITY KEY

    Refer to UPDATE ECU SECURITY KEY [11/2020 - ]

  20. BLEED BRAKE SYSTEM

    Refer to BLEEDING [11/2020 - ]

  21. INSPECT AND ADJUST BRAKE PEDAL

    Refer to ADJUSTMENT [11/2020 - 12/2023]

  22. PERFORM CALIBRATION

    Refer to UTILITY [11/2020 - ]

  23. CHECK AND CLEAR DTC
  24. INSPECT SRS WARNING LIGHT

    Refer to OPERATION CHECK [11/2020 - ]

  25. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

    Refer to WORK PROCEDURE [11/2020 - 12/2022]

    HINT:

    When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [11/2020 - 11/2021] , or refer to AUTOMATIC LEARNING CHART [11/2021 - 12/2023]
