Removal [11/2020 - 11/2021]: Procedure

REMOVE BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY
Refer to REMOVAL [11/2020 - 11/2021]

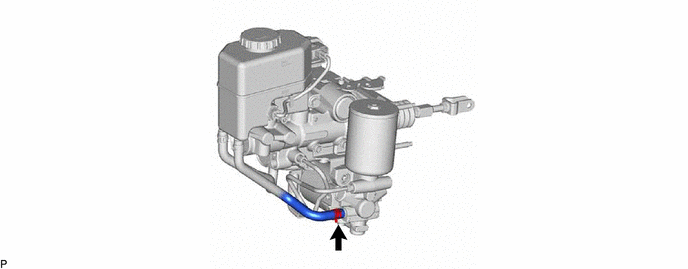

DISCONNECT NO. 2 RESERVOIR HOSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

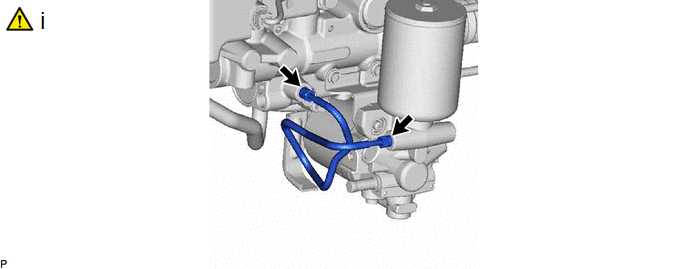

REMOVE NO. 1 BRAKE ACTUATOR TUBE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a union nut wrench, remove the No. 1 brake actuator tube.
NOTE:
- Do not kink or damage the brake line.
- Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.

REMOVE BRAKE BOOSTER WITH ACCUMULATOR PUMP ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

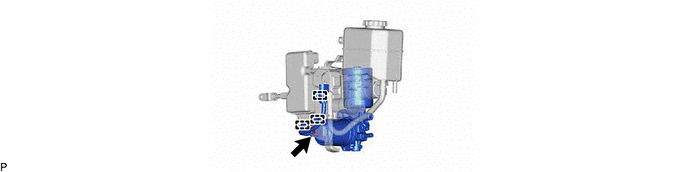

REMOVE NO. 2 WIRE CLAMP BRACKET

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:
Perform this procedure only when replacement of the No. 2 wire clamp bracket is necessary.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a 5 mm long hexagon socket wrench, remove the bolt and No. 2 wire clamp bracket.

REMOVE NO. 2 BRAKE POWER SUPPLY BRACKET

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:
Perform this procedure only when replacement of the No. 2 brake power supply bracket is necessary.

Using a 5 mm long hexagon socket wrench, remove the 2 bolts and No. 2 brake power supply bracket.

REMOVE NO. 3 BRAKE POWER SUPPLY BRACKET

HINT:
Perform this procedure only when replacement of the No. 3 brake power supply bracket is necessary.

Using a 5 mm long hexagon socket wrench, remove the 2 bolts and No. 3 brake power supply bracket.
