COMPONENTS (INSTALLATION)

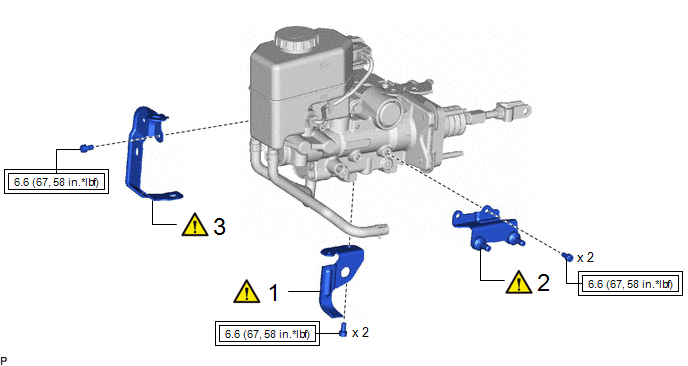

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | NO. 3 BRAKE POWER SUPPLY BRACKET | - | See step 1 | - | - |
| 2 | NO. 2 BRAKE POWER SUPPLY BRACKET | - | See step 2 | - | - |
| 3 | NO. 2 WIRE CLAMP BRACKET | - | See step 3 | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|

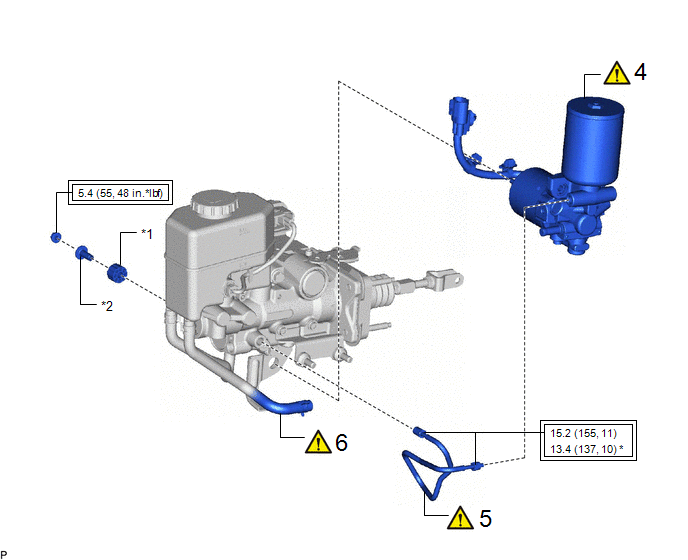

| 4 | BRAKE BOOSTER WITH ACCUMULATOR PUMP ASSEMBLY | 47070B | See step 4 | - | - |
| 5 | NO. 1 BRAKE ACTUATOR TUBE | 44551C | See step 5 | - | - |
| 6 | NO. 2 RESERVOIR HOSE | 47235G | See step 6 | - | - |
| *1 | BRAKE BOOSTER PUMP BUSHING | *2 | BRAKE ACTUATOR CASE COLLAR |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a union nut wrench |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|

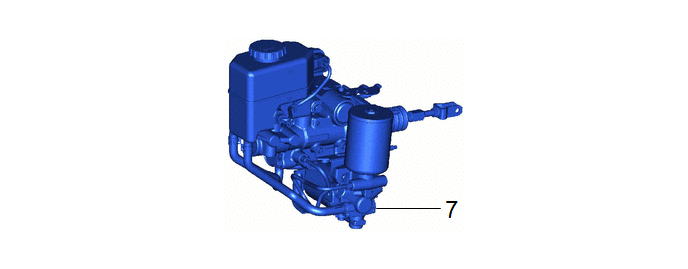

| 7 | BRAKE MASTER CYLINDER WITH PUMP ASSEMBLY | 47210L | - | - | - |
NOTE:
Do not carry the brake master cylinder with pump assembly by the parts shown in the illustration.

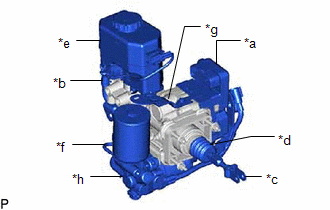

| *a | No. 1 Skid Control ECU |
| *b | No. 1 Reservoir Hose and No. 2 Reservoir Hose |
| *c | Master Cylinder Push Rod Clevis |
| *d | Boot |
| *e | Brake Master Cylinder Reservoir |
| *f | No. 1 Brake Actuator Tube |
| *g | No. 1 Wire Clamp Bracket |
| *h | Brake Booster with Accumulator Pump Assembly |
