Inspection [11/2020 - ]: Procedure

  1. INSPECT BRAKE BOOSTER WITH ACCUMULATOR PUMP ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

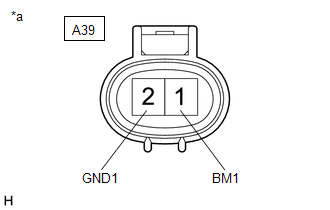

      GTY1167356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Brake Booster With Accumulator Pump Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      A39-1 (BM1) - A39-2 (GND1) Always 10 Ω or less Ω
