Installation [11/2020 - ]: Procedure
- INSTALL SEAT CUSHION HEATER ASSEMBLY RH

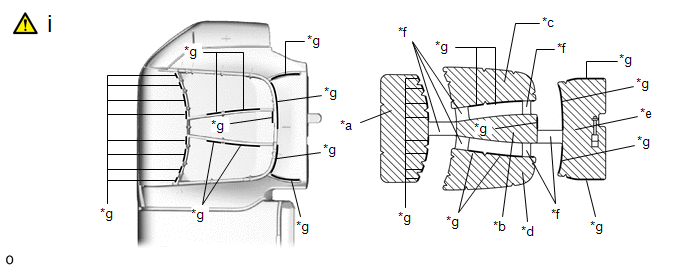

*a A Area *b B Area *c C Area *d D Area *e E Area *f Bridge Area *g Matchmark - - - Follow the steps below to install the seat cushion heater assembly RH to the rear seat cushion pad sub-assembly.
1. Remove the peeling paper on the A area and attach the A area of the seat cushion heater assembly RH to the rear seat cushion pad sub-assembly aligning with the matchmark.
2. Remove the peeling paper on the B area and attach the B area of the seat cushion heater assembly RH to the rear seat cushion pad sub-assembly aligning with the matchmark.
3. Remove the peeling paper on the C area and attach the C area of the seat cushion heater assembly RH to the rear seat cushion pad sub-assembly aligning with the matchmark.
4. Remove the peeling paper on the D area and attach the D area of the seat cushion heater assembly RH to the rear seat cushion pad sub-assembly aligning with the matchmark.
5. Remove the peeling paper on the E area and attach the E area of the seat cushion heater assembly RH to the rear seat cushion pad sub-assembly aligning with the matchmark.
6. Insert the bridge area to the groove of rear seat cushion pad sub-assembly.
NOTE:- After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.
- Do not reuse the seat cushion heater assembly RH and rear seat cushion pad sub-assembly.
- Apply pressure to paste the seat cushion heater assembly RH to the rear seat cushion pad sub-assembly securely.
- Follow the steps below to install the seat cushion heater assembly RH to the rear seat cushion pad sub-assembly.
- INSTALL SEAT CUSHION HEATER ASSEMBLY LH
- Use the same procedure described for the RH side.
- INSTALL BENCH TYPE REAR SEAT CUSHION COVER
Refer to PROCEDURE - Step 20 - INSTALL REAR SEAT CUSHION LOCK HOOK
- INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY
Refer to PROCEDURE - Step 5 - INSPECT SEAT HEATER SYSTEM
Refer to OPERATION CHECK [11/2020 - ]
