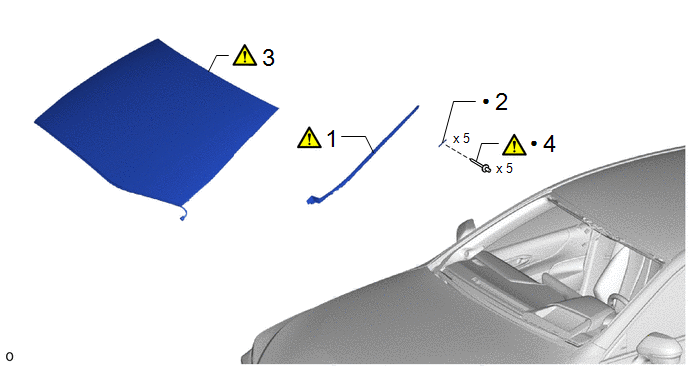

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | LOWER WINDSHIELD MOULDING OUTSIDE LH | 75536D | See step 1 | - | - |
| 2 | NO. 1 WINDSHIELD OUTSIDE MOULDING CLIP | 75545B | - | - | - |
| 3 | WINDSHIELD GLASS | 56111 | See step 3 | - | - |
| 4 | NO. 3 WINDSHIELD OUTSIDE MOULDING CLIP | 75547C | See step 4 | - | - |
| • | Non-reusable part | - | - |
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the No. 3 windshield outside moulding clip removal/installation are shown below.
NECESSARY PROCEDURE AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedures | Necessary Procedures | Effect/Inoperative Function when Necessary Procedures are not Performed | Link |
|---|---|---|---|
for Stereo Camera Type:
|
Adjust object recognition camera |
|
One Time Recognition: Refer to ADJUSTMENT (ONE TIME RECOGNITION) [11/2021 - 12/2023] Sequential Recognition: Refer to ADJUSTMENT (SEQUENTIAL RECOGNITION) [11/2021 - 12/2023] |
for Mono Camera Type:
|
Adjust forward recognition camera |
|
One Time Recognition: Refer to TARGET ADJUSTMENT (ONE TIME RECOGNITION) [11/2020 - 12/2023] Sequential Recognition: Refer to TARGET ADJUSTMENT (SEQUENTIAL RECOGNITION) [11/2020 - 12/2023] Driving Adjustment: Refer to DRIVING ADJUSTMENT [11/2020 - 12/2023] |
HINT:
- Use the same procedure for the RH and LH sides.
- The procedure described below is for the LH side.
