Removal [11/2020 - ]: Procedure

REMOVE CENTER ROOF DRIP SIDE FINISH MOULDING LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

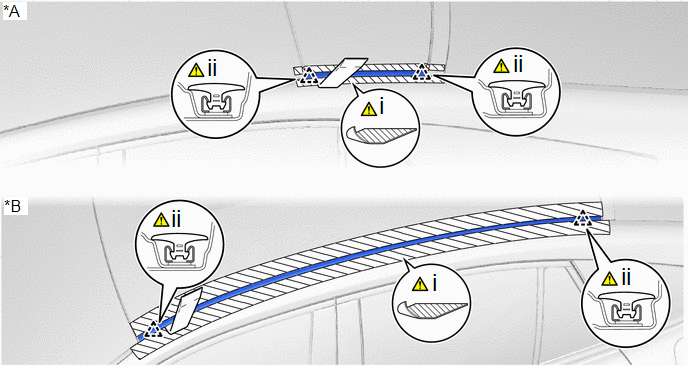

for Panoramic Moon Roof

for Normal Roof

Put protective tape around the center roof drip side finish moulding LH.
Using moulding remover D, detach the clip and remove the center roof drip side finish moulding LH.
NOTE:
- Do not remove the No. 1 roof drip side finish moulding clip.
- If a No. 1 roof drip side finish moulding clip is damaged or falls off, replace it with a new one.
