Removal [11/2020 - ]: Procedure

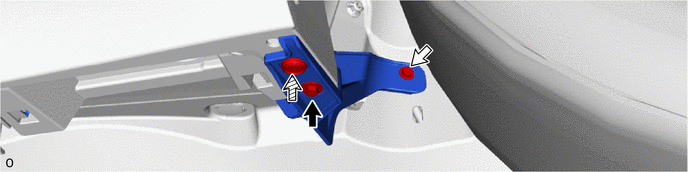

  1. REMOVE ROCKER PANEL MOULDING PROTECTOR LH
    1. GTY1015239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw<A> Screw<B>
      Clip - -

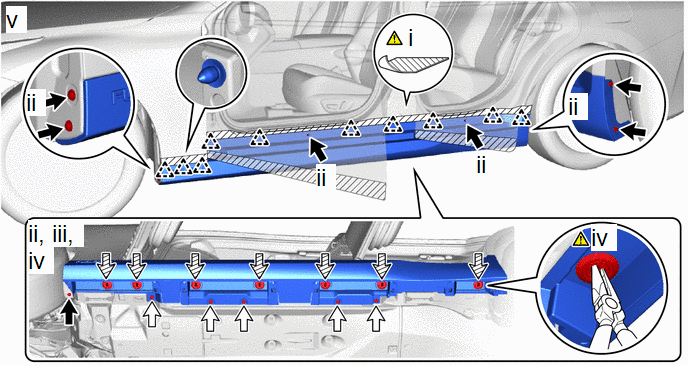

  2. REMOVE ROCKER PANEL MOULDING ASSEMBLY LH
    1. GTY1015990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw Clip<A>
      Clip<B> - -
      1. Put protective tape around the rocker panel moulding assembly LH.
      2. Remove the 7 screws.
      3. Remove the 5 clips<A>.
      4. Using needle-nose pliers, detach the 7 clips<B>.
      5. Detach the clip and remove the rocker panel moulding assembly LH.
