Caution / Notice / Hint

COMPONENTS (REASSEMBLY)

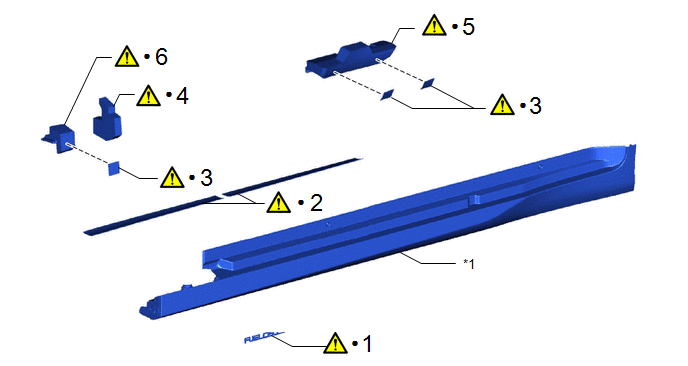

Fig 1: Rocker Panel Moulding Reassembly Components [11/2020 - 12/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	ROCKER PANEL MOULDING EMBLEM	75374A	See step  1	-	-
2	ROCKER PANEL MOULDING PAD	75861C	See step  2	-	-
3	NO. 3 MOULDING TAPE	75897B	See step  3	-	-
4	SIDE MUDGUARD PROTECTOR LH	76926F	See step  4	-	-
5	NO. 4 ROCKER PANEL MOULDING PROTECTOR	75864B	See step  5	-	-
6	ROCKER PANEL MOULDING COVER LH	75858A	See step  6	-	-

HINT:

• Use the same procedure for the RH and LH sides.
• The procedure listed below is for the LH side.
