Removal [11/2020 - 12/2023]: Procedure

  1. REMOVE SYMBOL EMBLEM

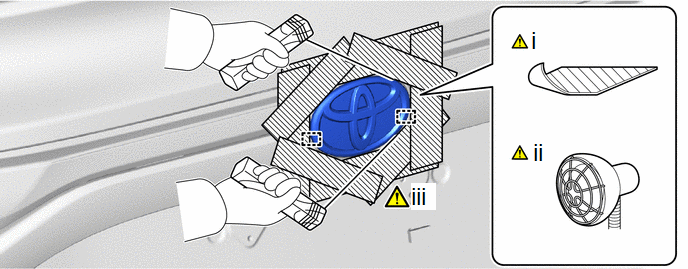

    1. GTY1017452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Put protective tape around the symbol emblem.
      2. Heat the adhesive of the symbol emblem using a heat light.

        Standard Value

        Part Temperature
        Symbol Emblem 20 to 30°C (68 to 86°F)
        WARNING:
        • Do not touch the heat light and heated parts.
        • Touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the symbol emblem excessively.

      3. Remove the symbol emblem by the below procedure.

        1. Insert piano wire between the luggage compartment door outside garnish sub-assembly and symbol emblem.

        HINT:

        Be careful of the boss positions.

        2. Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.

        3. Pull the piano wire and scrape off the double-sided tape that holds the symbol emblem to the luggage compartment door outside garnish sub-assembly.

        NOTE:

        Be careful not to damage the luggage compartment door outside garnish sub-assembly.

  2. REMOVE NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE

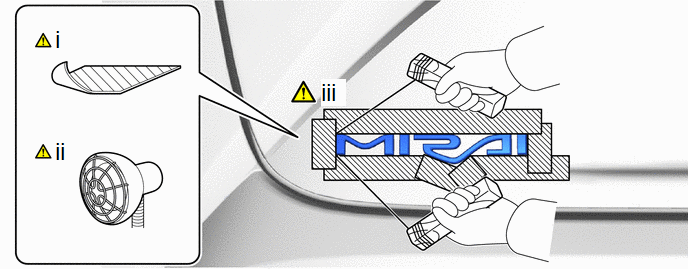

    1. GTY1016903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Put protective tape around the No. 2 luggage compartment door name plate.
      2. Heat the adhesive of the No. 2 luggage compartment door name plate using a heat light.

        Standard Value

        Part Temperature
        No. 2 Luggage Compartment Door Name Plate 20 to 30°C (68 to 86°F)
        WARNING:
        • Do not touch the heat light and heated parts.
        • Touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the No. 2 luggage compartment door name plate excessively.

      3. Remove the No. 2 luggage compartment door name plate by the below procedure.

        1. Insert piano wire between the luggage compartment door panel and No. 2 luggage compartment door name plate.

        2. Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.

        3. Pull the piano wire and scrape off the double-sided tape that holds the No. 2 luggage compartment door name plate to the luggage compartment door panel.

        NOTE:

        Be careful not to damage the luggage compartment door panel.

  3. REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR PLATE

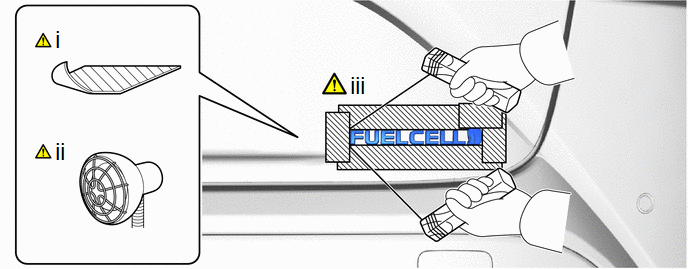

    1. GTY1017051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Put protective tape around the No. 3 luggage compartment door plate.
      2. Heat the adhesive of the No. 3 luggage compartment door plate using a heat light.

        Standard Value

        Part Temperature
        No. 3 Luggage Compartment Door Plate 20 to 30°C (68 to 86°F)
        WARNING:
        • Do not touch the heat light and heated parts.
        • Touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the No. 3 luggage compartment door plate excessively.

      3. Remove the No. 3 luggage compartment door plate by the below procedure.

        1. Insert piano wire between the luggage compartment door panel and No. 3 luggage compartment door plate.

        2. Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.

        3. Pull the piano wire and scrape off the double-sided tape that holds the No. 3 luggage compartment door plate to the luggage compartment door panel.

        NOTE:

        Be careful not to damage the luggage compartment door panel.

  4. REMOVE NO. 4 LUGGAGE COMPARTMENT DOOR PLATE

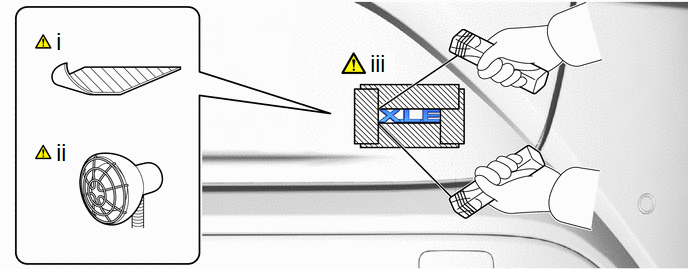

    1. GTY1017072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Put protective tape around the No. 4 luggage compartment door plate.
      2. Heat the adhesive of the No. 4 luggage compartment door plate using a heat light.

        Standard Value

        Part Temperature
        No. 4 Luggage Compartment Door Plate 20 to 30°C (68 to 86°F)
        WARNING:
        • Do not touch the heat light and heated parts.
        • Touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the No. 4 luggage compartment door plate excessively.

      3. Remove the No. 4 luggage compartment door plate by the below procedure.

        1. Insert piano wire between the luggage compartment door panel and No. 4 luggage compartment door plate.

        2. Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.

        3. Pull the piano wire and scrape off the double-sided tape that holds the No. 4 luggage compartment door plate to the luggage compartment door panel.

        NOTE:

        Be careful not to damage the luggage compartment door panel.

  5. REMOVE NO. 5 LUGGAGE COMPARTMENT DOOR NAME PLATE

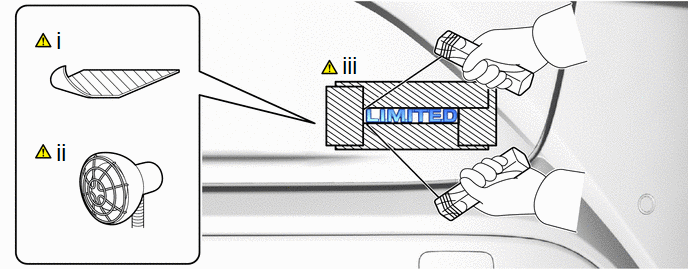

    1. GTY1017048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Put protective tape around the No. 5 luggage compartment door name plate.
      2. Heat the adhesive of the No. 5 luggage compartment door name plate using a heat light.

        Standard Value

        Part Temperature
        No. 5 Luggage Compartment Door Name Plate 20 to 30°C (68 to 86°F)
        WARNING:
        • Do not touch the heat light and heated parts.
        • Touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the No. 5 luggage compartment door name plate excessively.

      3. Remove the No. 5 luggage compartment door name plate by the below procedure.

        1. Insert piano wire between the luggage compartment door panel and No. 5 luggage compartment door name plate.

        2. Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.

        3. Pull the piano wire and scrape off the double-sided tape that holds the No. 5 luggage compartment door name plate to the luggage compartment door panel.

        NOTE:

        Be careful not to damage the luggage compartment door panel.

  6. REMOVE ROCKER PANEL MOULDING EMBLEM

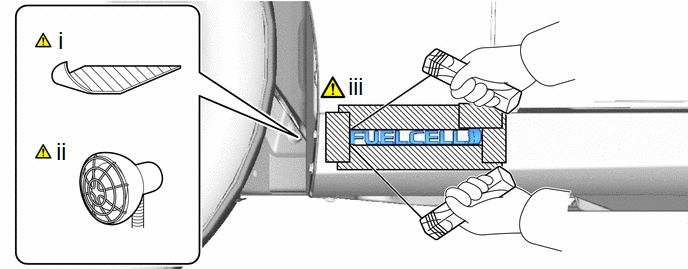

    1. GTY1016461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Put protective tape around the rocker panel moulding emblem.
      2. Heat the adhesive of the rocker panel moulding emblem using a heat light.

        Standard Value

        Part Temperature
        Rocker Panel Moulding Emblem 20 to 30°C (68 to 86°F)
        WARNING:
        • Do not touch the heat light and heated parts.
        • Touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the rocker panel moulding emblem excessively.

      3. Remove the 2 rocker panel moulding emblems by the below procedure.

        1. Insert piano wire between the rocker panel moulding and rocker panel moulding emblem.

        2. Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.

        3. Pull the piano wire and scrape off the double-sided tape that holds the rocker panel moulding emblem to the rocker panel moulding.

        NOTE:

        Be careful not to damage the rocker panel moulding.

        4. Use the same procedure for the other side.
