Caution / Notice / Hint

COMPONENTS (REMOVAL)

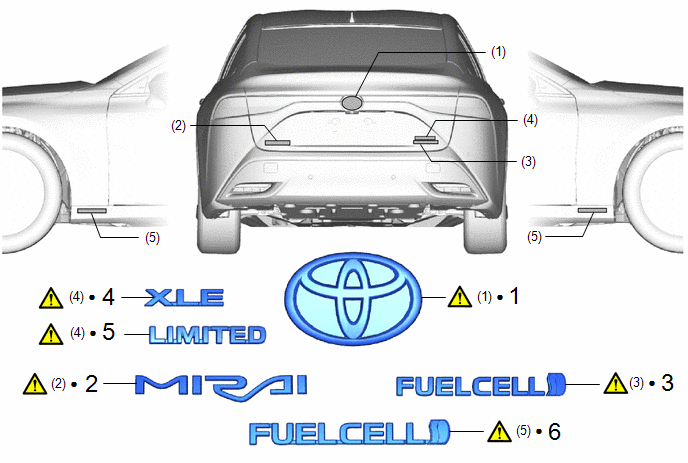

Fig 1: Name Plate Removal Components [11/2020 - 12/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	SYMBOL EMBLEM	75741E	See step 1	-	-
2	NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE	75442	See step 2	-	-
3	NO. 3 LUGGAGE COMPARTMENT DOOR PLATE	75443A	See step 3	-	-
4	NO. 4 LUGGAGE COMPARTMENT DOOR PLATE	75444	See step 4	-	-
5	NO. 5 LUGGAGE COMPARTMENT DOOR NAME PLATE	75445	See step 5	-	-
6	ROCKER PANEL MOULDING EMBLEM	75374A	See step 6	-	-

•

Non-reusable part
